Item NO.:
TMAX-FN-10Payment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:
CE ROHS Certificate

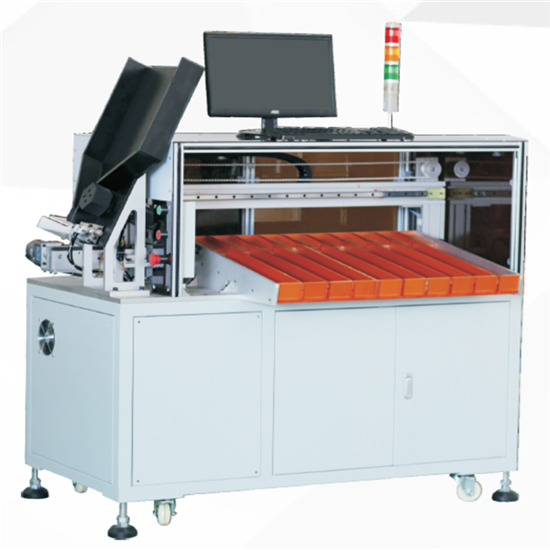

10 Channels 18650 26650 21700 32650 Automatic Cylindrical Battery Grading Machine Battery Sorting Machine
INTRODUCTION
The 10-channel cylindrical battery sorter is a machine consisting of a voltage internal resistance tester, which is used to test the voltage internal resistance of batteries. The power of each battery is calculated according to the software settings of the host computer, and the batteries of different grades are converted according to the judgement results. Different channels for automatic classification of battery products.

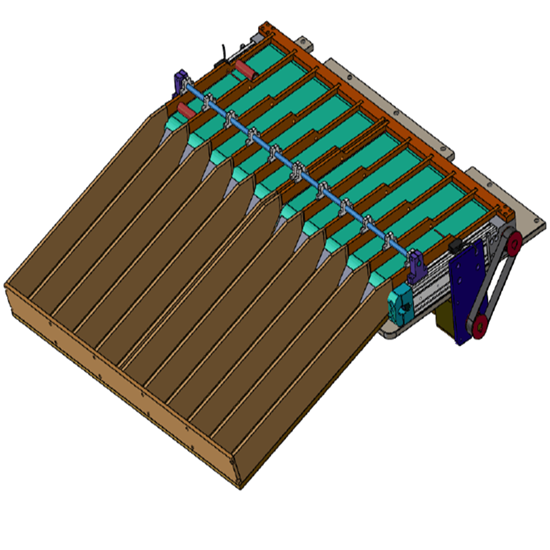

The automatic sorting device consists of feeding mechanism, detection mechanism, automatic sorting mechanism and receiver mechanism. The machine system designs and develops the upper computer software according to the user's requirement, and automatically classifies the batteries according to the grouping information, and collects them into the corresponding receivers.
FEATURE
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
2. 10 Channel automatic cell sorter is designed to sort cylindrical cells
3. Sort by cell's voltage and impedance up to 10 groups
4. Automatic sorting control
5. Fast sorting speed ≥90PPM
6. Easy to refill cells during the process
7. Wheels design, easy to move the machine to any operating place
SPECIFICATION
Model
TMAX-FN-10
Power supply
AC220V ± 10% 50Hz
Power Consumption
≤1000W
Display Screen
Large size LCD screen/Touch screen
Compressed Air Pressure
0.5 ~ 0.7Mpa
Sorting Speed
≥ 90PPM
Chance of Damaged Product
≤0.1%
NG Equipment Failure Rate
≤0.1%
Open Circuit Voltage Accuracy
± 0.1% rdg
Display Resolution: 0.1 millivolt
AC Resistance Accuracy
± 0.5% rdg
Display Resolution: 0.1 milliohm
Productivity
5000pcs/h

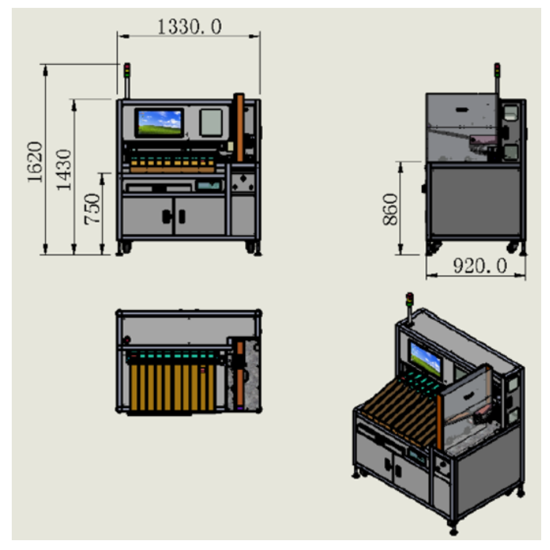

Dimension
1330x920x1600mm
Adaptation Battery
Cylindrical Battery
(18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel
10 channels
Operating Temperature Range
25 ° C ± 5 ° C
Humidity
≤85%
Total weight
300kg
