128-Channel 5V 30A Pouch Battery Hot Press Formation Machine for Lithium Pouch Cells

I. Equipment Overview

1. Function (Principle) Introduction
This equipment is primarily for the formation of polymer battery cells under high-temperature and pressure conditions, aiding in denser SEI film formation, fuller capacity activation, and better capacity consistency. It supports high-current charging, shortening formation time and reducing the battery production cycle.
The complete system includes a 128-channel formation power supply and two fixtures (left and right positioned). Each fixture has 64 channels, totaling 128 channels.

2. Main Functions

The equipment comprises six key systems: temperature control, over/under-temperature alarm, over/under-voltage alarm, pressure control, formation cabinet system, and fixture mechanism.
Its features include: layer-specific independent temperature control, pressure regulation, charge/discharge functions, overcharge/overdischarge protection, secure contact between battery tabs and terminals, data connectivity, post-process data storage, post-charging voltage sorting, post-discharging capacity sorting, and a smoke alarm system.

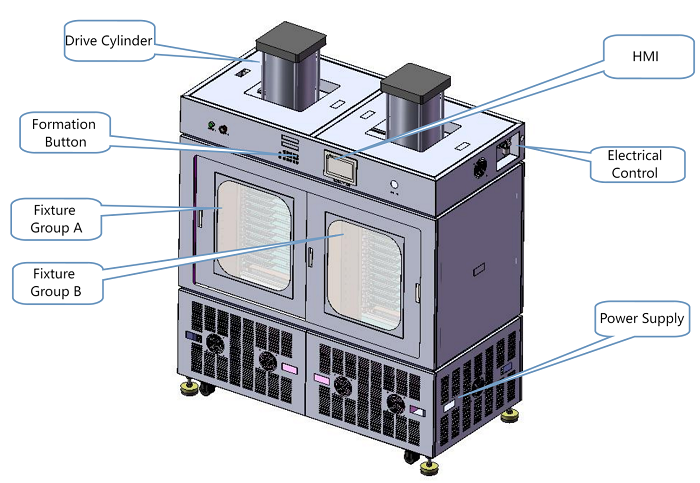

3. Equipment Structure

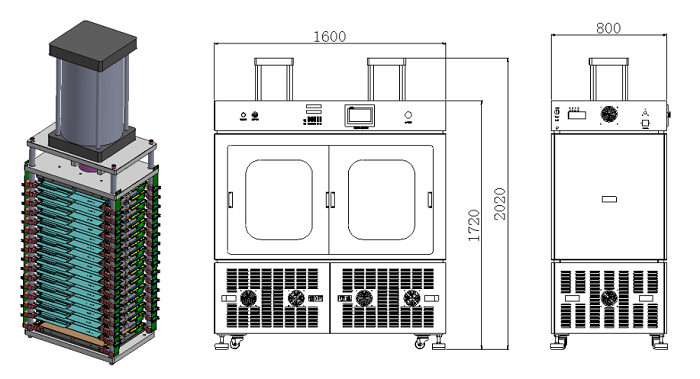

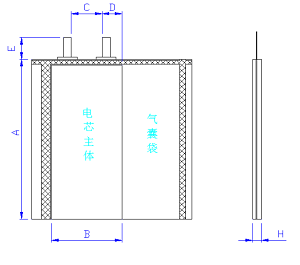

4. Fixture Structure and Overall Dimensions (for reference)

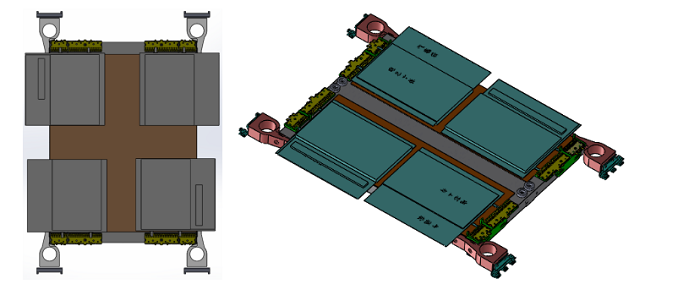

5. Battery Placement

6. Operation Process:
Power on → Manually open cabinet door → Insert batteries into Fixture A → Set Fixture A parameters → Lower Fixture A and start process → Insert batteries into Fixture B → Set Fixture B parameters → Lower Fixture B and start process → After Fixture A completes, manually remove batteries.

7. Equipment Features

1. Compatible with cell thickness range of 3–10mm, no need to adjust fixture or replace tab blocks.

2. Fixture aluminum plates are made of 19.5mm thick grid-type hollow aluminum, lightweight, strong, and deformation-resistant.

II. Technical Parameters

2. Applicable Product Parameters

III. Main Software Functions

1. Working modes: constant current charging, constant current/voltage charging, constant current discharging, rest, and cycling; cut-off conditions: voltage, time, final current, and final capacity.

2. Formation steps can resume from power failure, manual pause, software shutdown, communication failure, and abnormal stop.

3. All step curves and test data per battery are saved; current and historical data can be viewed per channel in data or curve format; supports Excel export for single/batch and auto export after completion.

4. Multiple inspection interfaces: graphical, summary data, categorized data, abnormal indicators.

5. Step protections for voltage, current, temperature, and pressure with alarm alerts.

6. Minimum PC configuration: PII/300 CPU, ≥1GB RAM, ≥80GB HDD, EGA/VGA display, mouse & keyboard, Windows 2000 or above, one USB serial port.

7. Operation software provided; user supplies the PC. One PC provided for every six units.

8. Protection Functions:
(1) Over-voltage, under-voltage, over-current, under-current, over-capacity protection
(2) Configurable voltage/current thresholds with alerts and records
(3) Over-temp/pressure warning lights
(4) Emergency stop: fixture remains closed, system power cut

(5) Smoke alarm: buzzer sounds on detection

9. Three-color status indicator lights:

Yellow: Standby (fixture not clamped)

Green: In process (clamped and charging)

Red: Fault (over/low temp/voltage, smoke, communication error)

IV. Equipment Installation Requirements

1. Power Supply: AC380V, 50Hz, three-phase four-wire, voltage fluctuation ±10%

2. Power Consumption: MAX 30KW

3. Compressed Air: 0.6–0.8MPa, fluctuation ±1% (dehydrated, oil-free, filtered, stabilized clean air)

4. Equipment Specs:

l Weight: ~1.0 ton

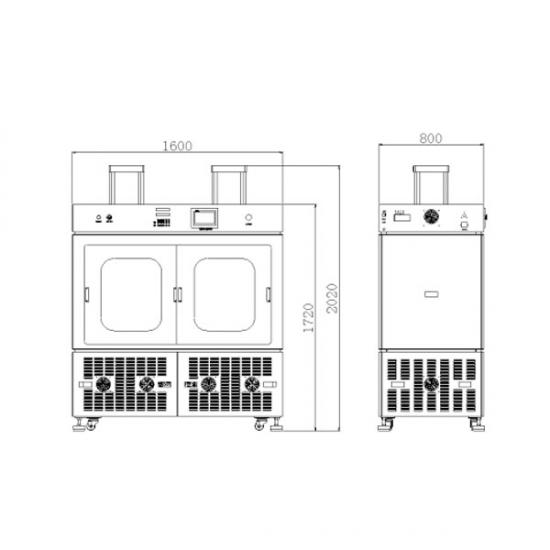

l Dimensions: L1.6m × W0.8m × H1.72m (with cylinder: 2.2m) (for reference, subject to actual equipment)

l Color: Light gray or customer-specified

5. Environment:

Temp: 0–45℃

RH: 30%–75%RH, ensure dry, ventilated, acid/alkali-free

Grounding: Protective grounding
