Item NO.:
MSK-112A-CPayment:
L/C,T/T,Western Union, PaypalLead Time：
5 daysCertificate:

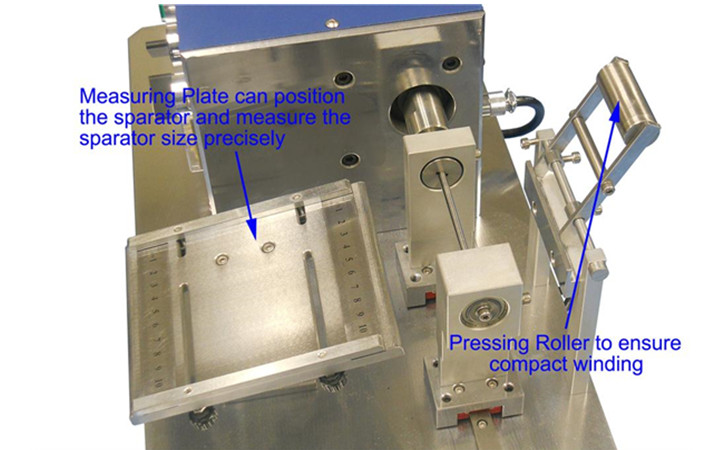

CE ROHS Certificate18650 26650 32650 Battery Winding Machine for Cylindrical Battery Electrode Making
|
Model |
Electrode Winding Machine |
|
Working Voltage |
AC110V/220V, 50/60HZ |
|
Power |
50W |
|
Warranty |
Two Year Limited Warranty With Lifetime Support |
|
Winding Speed |
0 - 170 RPM Adjustable |
|
Winding Blade |
The Winding WidthDepends OnThe Width Of The Winding Blade Customized Square Winding Blade According To Battery Model |
|
Winding Mode |
Switchable Between Clockwise And Counterclockwise |
|
Output |
70-100EA/H, According To Battery Size And Maunal |
|
Product Dimensions (L*W*H) |
380*320*300mm |
|
Net Weight |
About 30kg |
|
Application Notes |
This Machine Can Be Used For Prismatic Battery With Square Winding Shaft, And You Can Also Choose The Round Winding Shaft For Cylinder Cell Core Winding, We Will Supply With The Suitable Winding Accessories According To Your Battery Model |
