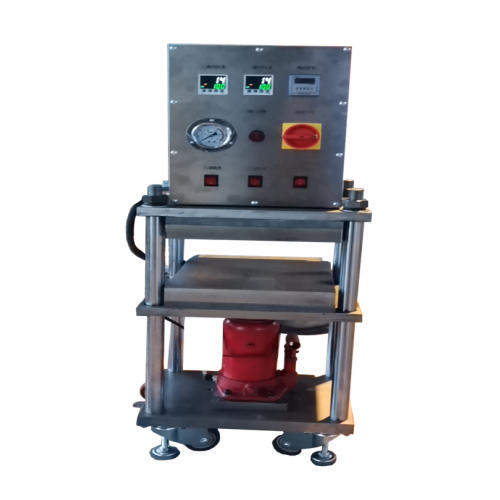

20T Laboratory Small Rubber Hot Flat Vulcanizing Press Equipment

Item NO.:
TMAX-ZB-910
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

20T Laboratory Small Rubber Hot Flat Vulcanizing Press Equipment

Introduction

The ZB-910 small-scale experimental vulcanizing machine can be used for vulcanization or molding of rubber products, plastics, composite materials and other synthetic materials, and can also be used for pressing standard test pieces for tensile, impact and other tests. This equipment features convenient operation, small floor space and low energy consumption. It is particularly suitable for use in factories and school laboratories without three-phase power supply.

Advantage

The machine is lightweight and only requires a regular single-phase power supply. Its installation and operation are relatively simple. The pressure gauge shows the pressure, which can be adjusted freely within the range of 0 to 20MPa. The thermometer shows the temperature, and the temperature within the range can be set arbitrarily.

Technical parameters

Nominal clamping force	0.2MN (i.e., 20 tons)
Hot plate size	300*300mm
Hot plate spacing	120mm
Number of working floors	Single layer
Temperature range	RT-250℃ (can be customized)
Temperature fluctuation	±2%℃
Maximum hydraulic pressure	20MPa
Total power	4KW
Loading method	Manual loading
Power Supply	220V 50Hz
Dimensions	4504501000mm
Net weight	Approximately 220Kg
