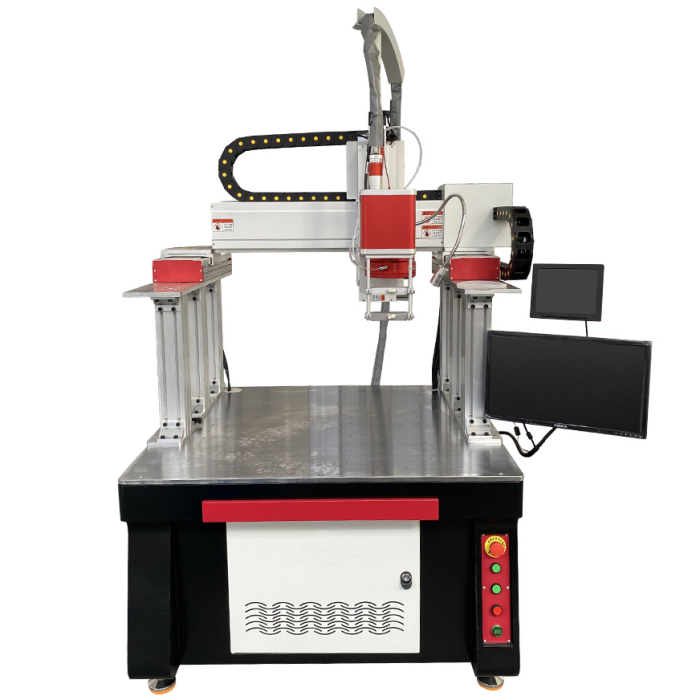

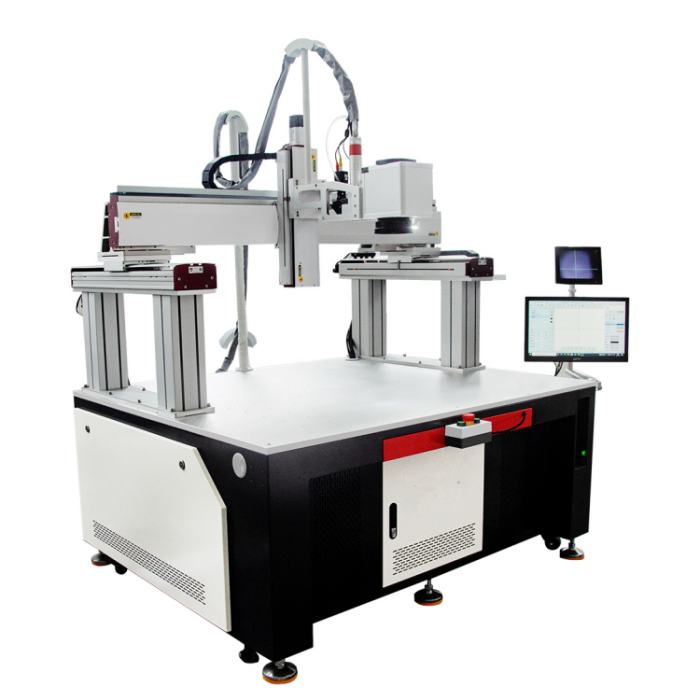

3000W Fiber Laser Galvanometer Welding Machine for Cu / Al / Ni Sheets Welding Prismatic / Cylindrical Battery Pack Welding

3000W Fiber Laser Galvanometer Welding Machine for Cu / Al / Ni Sheets Welding Prismatic / Cylindrical Battery Pack Welding

Ⅰ、Introduction:

Suitable for laser welding of new energy lithium batteries. Fast welding speed, precise welding position, and high repeatability accuracy of 0.05mm.

Equipped with servo motor, large spot galvanometer, stable laser performance gantry tooling.

The welding speed is fast, the heat affected zone is small, and it can effectively improve the accuracy of the workpiece. The weld seam is smooth, free of impurities, uniform and dense, and does not require manual polishing.

Can precisely control the high-precision positioning of focused light points. Improve welding efficiency, reduce working hours, and lower production costs.

Ⅱ、Equipment features:

Equipped with servo motor, large spot galvanometer, stable laser performance, gantry type fixture with fast welding speed and small heat affected zone, it can effectively improve the accuracy of the workpiece. The weld seam is smooth and free of impurities, uniform and dense, and does not require manual polishing. It can precisely control the focusing light point for high-precision positioning, improve welding efficiency, reduce working hours, and lower production costs.

 Ⅲ、Fiber optic series welding machine configuration:

Model	TMAX-HY-C3000W	Brand
Laser system	Continuous laser –C3000W	TMAX
Transmission mechanism	1 x10 meter fiber optic cable	TMAX
Welding head	Fiber optic galvanometer welding head	TMAX
Control mode	Industrial computer, specialized galvanometer welding software	TMAX
Locate mode	Semiconductor red light, CCD monitoring and positioning	TMAX
Sports mechanism	Gantry X/Y/Z (left and right, front and rear, upper and lower) axis motor guide rail （800mm*600mm*400mm）	TMAX
Gas Shield	Synchronous argon or nitrogen protection	TMAX
Refrigeration system	Integrated constant temperature machine internal circulation cooling water	Bingyue
Cabinet	Main machine:1580*900*1600mm、 Water tank:530*450*700mm	TMAX

Ⅳ、Technical parameters:

Model	TMAX-HY-C3000W
Maximum laser power	3000W
Output center wavelength	1070±10
Welding method	Continuous, spot welding
Laser welding seam	0.2-5mm
Maximum welding depth	5mm（Stainless steel）
Fiber Length	10m
Host size	1.58*0.9*1.6m
Working voltage	380V/32A
Operation temperature	0-45℃
Weight	360KG

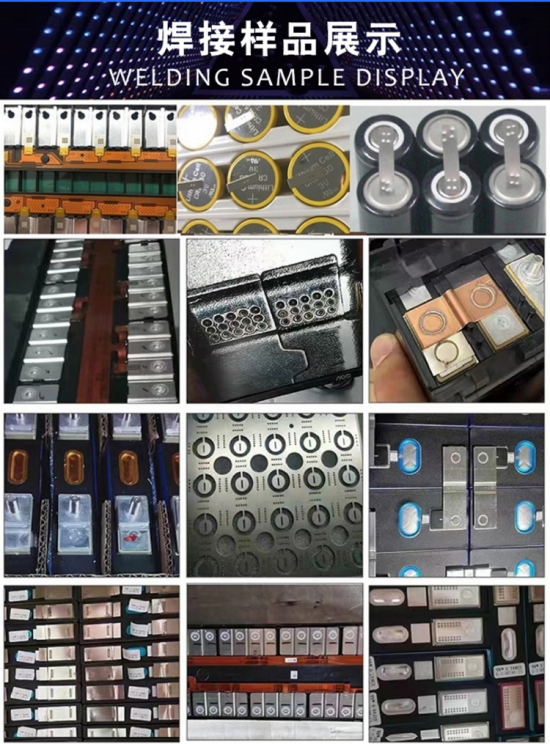

Sample Display:
