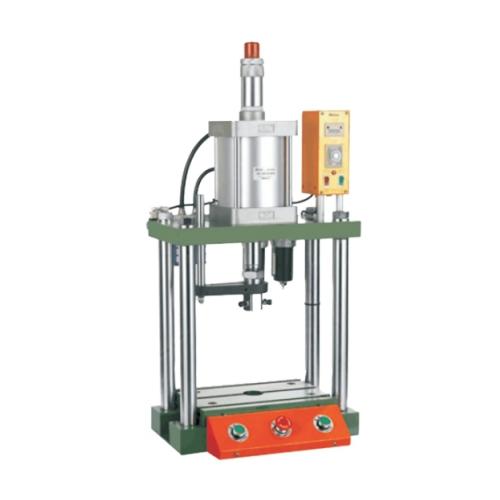

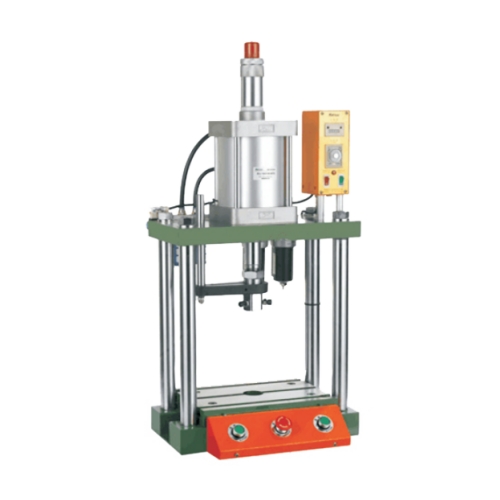

CE ROHS Certificate300KG Desktop Laboratory Pneumatic Press Fitting Equipment
Introduction
Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals.
Technical parameter
|
Model |
BSW01-100kg |
BSW01-300kg |
BSW01-500kg |
BSW01-800kg |
BSW01-1500kg |
BSW01-2200kg |
|
|
Nominal pressure(T) |
0.1 |
0.3 |
0.5 |
0.8 |
1.5 |
2.2 |
|
|
Maximum working pressure of liquid(Mpa) |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
|
|
Maximum opening distance mm |
250 |
250 |
250 |
300 |
300 |
300 |
|
|
Maximum stroke mm |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
Workbench size |
Left and right mm |
300 |
300 |
300 |
350 |
350 |
350 |
|
Before and after mm |
200 |
200 |
200 |
250 |
250 |
250 |
|
|
Height of machine mm |
800 |
800 |
850 |
1000 |
1050 |
1100 |
|
