40 Layers Pouch Cell Tab Ultrasonic Welder

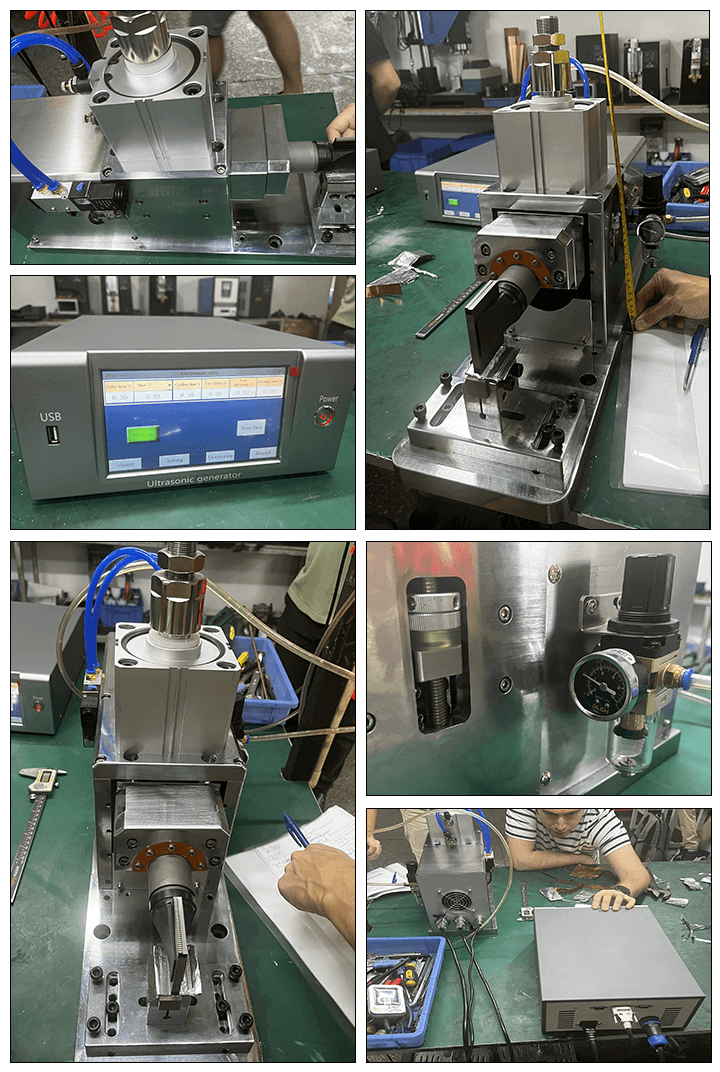

TMAX-USW-3000W ultrasonic metal welding machine is Designed for Lithium battery tab welding with touch-screen controller.
It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion
pouch cells in R&D laboratories and production line.
The 3000w Battery Welding Machine can weld stacked electrode with 10-40 layers aluminum foil or copper foil with Al tab and
Nickel tab, If with bigger battery with layer up to 30 layers, can choose the

Model	Battery Welding Machine TMAX-USW-3000W
Type	Ultrasonic spot welding machine
Welding ability:
1 10-30 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding. Welding point : 46, 48, 410, 412 mm customized
2 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding. Welding point : 46, 48, 410, 412 mm customized
3 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding. Welding point : 46, 48, 410, 412mm customized
4 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld. Welding point : 46, 412mm customized
Frequency	24KHZ
Max output power	3000W
Control mode	CPU control
Air supply	≥0.5MPa
Voltage source	110/ 220V 50HZ/60HZ

Spot Welder
