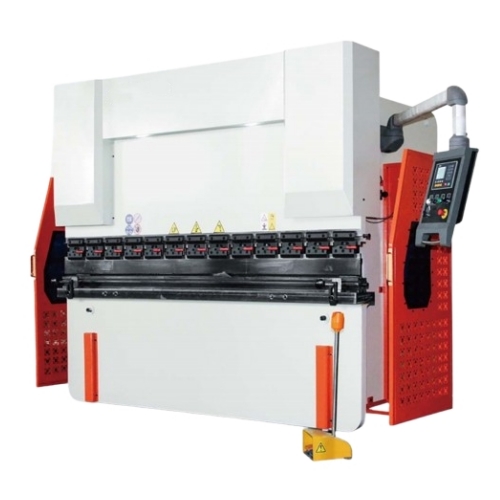

40T Simple Hydraulic CNC Metal Sheet Bending Machine Press Brakes


  • Item NO.:

    TMAX-WC67Y-40T/2200

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

40T Simple Hydraulic CNC Metal Sheet Bending Machine Press Brakes

Features

Complete steel-welded structure, with sufficient strength and rigidity

Hydraulic down-stroke structure, reliable and smooth

Mechanical stop unit, synchronous torque and high precision

Back gauge distance and upper ram stroke with electric adjustment,and counter display

Upper tool with tension compensating mechanism,in order to guarantee high precision of bending

E21 CNC system

X-axis and Y-axis drive automatic control



Technical parameter

Model

Nominal force

Worktable length

Columns distance

Throat depth

Slider stroke

Max. height

Power

Dimension

Unit

KN

mm

mm

mm

mm

mm

KW

L*W*H, mm

40T/2200

400

2200

1870

230

100

320

4

2200*1200*1900

40T/2500

400

2500

1960

230

100

320

4

2500*1200*1900

50T/2500

500

2500

1960

230

100

320

5.5

2500*1200*2000

63T/2500

630

2500

1960

250

120

320

5.5

2500*1300*2210

63T/3200

630

3200

2600

250

120

320

5.5

3200*1300*2210

80T/2500

800

2500

1960

300

120

320

7.5

2500*1400*2300

80T/32000

800

3200

2600

320

120

350

7.5

3200*1500*2300

80T/4000

800

4000

3160

320

120

350

7.5

4000*1500*2400

Force & Worktable length can be customized!
