57mm Width Aluminum Foil For 18650 Lithium Battery

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-A16
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

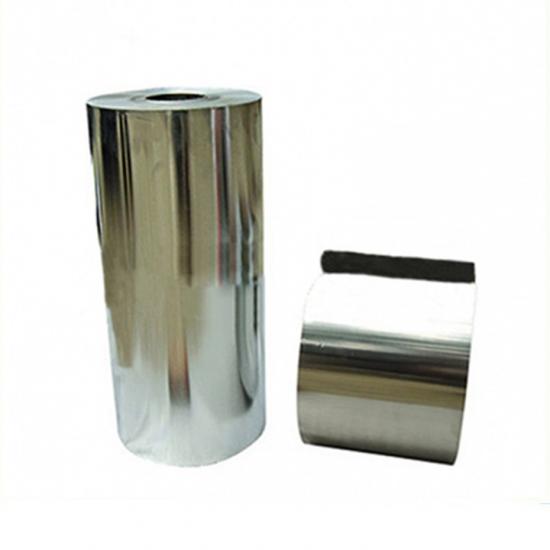

Aluminum Foil Roll For 18650 Lithium Ion Battery Cathode Curent Collector

Width:57mm  Thicness:16um Weight: 4kg/roll



Battery Grade Aluminum Foil Tapa For Lithium battery



Item

Data

Width

57mm

Thickness

16±1um

Areal density

30~34g/m2

With transverse surface density uniformity

≤0.003 g/ 40×40 mm

The same volume of vertical surface density uniformity

≤0.03 g/ 400×40 mm

High temperature oxidation resistance (200°C*30min)

No oxidation

Connect no

<2

Chemistry content(Al)

>99.45%

Extensibility

<0.5%

Normal temperature Tensile strength

 kgf /mm2

>141

After 1200C baking 1h, Tensile strength kgf/mm2

>122
