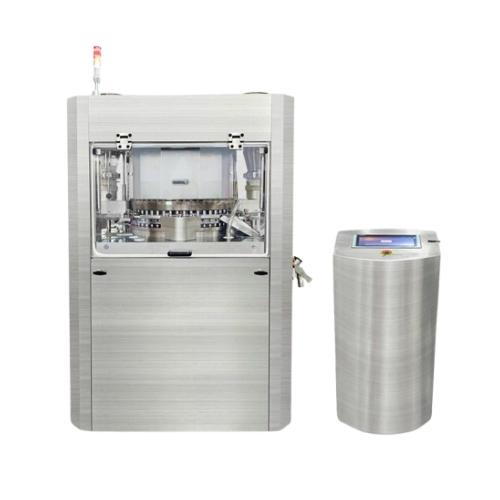

620000pcs/h High Production Automatic Rotary Pill Tablet Compression Press Equipment

Number of dies

51

65

83

99

Tablet pressing pressure, pre-pressing

The main pressure is 150kn, and the pre-pressure is 150kn

The main pressure is 150kn, and the pre-pressure is 150kn

The main pressure is 150kn, and the pre-pressure is 150kn

The main pressure is 150kn, and the pre-pressure is 150kn

Tablet diameter

25mm

16mm

13mm

10mm

Compressible tablets

Circular, irregular, two-color, ring-shaped

Circular, irregular, two-color, ring-shaped

Circular, irregular, two-color, ring-shaped

Circular, irregular, two-color, ring-shaped

The filling track is controlled by a servo motor

The average sheet weight accuracy is ≤±2%

The average sheet weight accuracy is ≤±2%

The average sheet weight accuracy is ≤±2%

The average sheet weight accuracy is ≤±2%

Compressible materials

Powder or granules

Powder or granules

Powder or granules

Powder or granules

Filling depth

20mm

18mm

18mm

18mm

Tablet thickness

1-8mm

1-8mm

1-8mm

1-8mm

Turntable speed

10-80 rpm

10-80 rpm

10-80 rpm

10-80 rpm

Production capacity

470000 pcs/h

620000 pcs/h

790000 pcs/h

950000 pcs/h

Motor power

11KW

11KW

11KW

11KW

Voltage

380V/220V/50Hz

380V/220V/50Hz

380V/220V/50Hz

380V/220V/50Hz

Size (mm)

1310*1305*2010

1310*1305*2010

1310*1305*2010

1310*1305*2010

Weight

5510 kg

5510 kg

5510 kg

5510 kg
