Automatic Jelly Roll Flattening Machine for Large Cylindrical Cells and Supercapacitors

Application

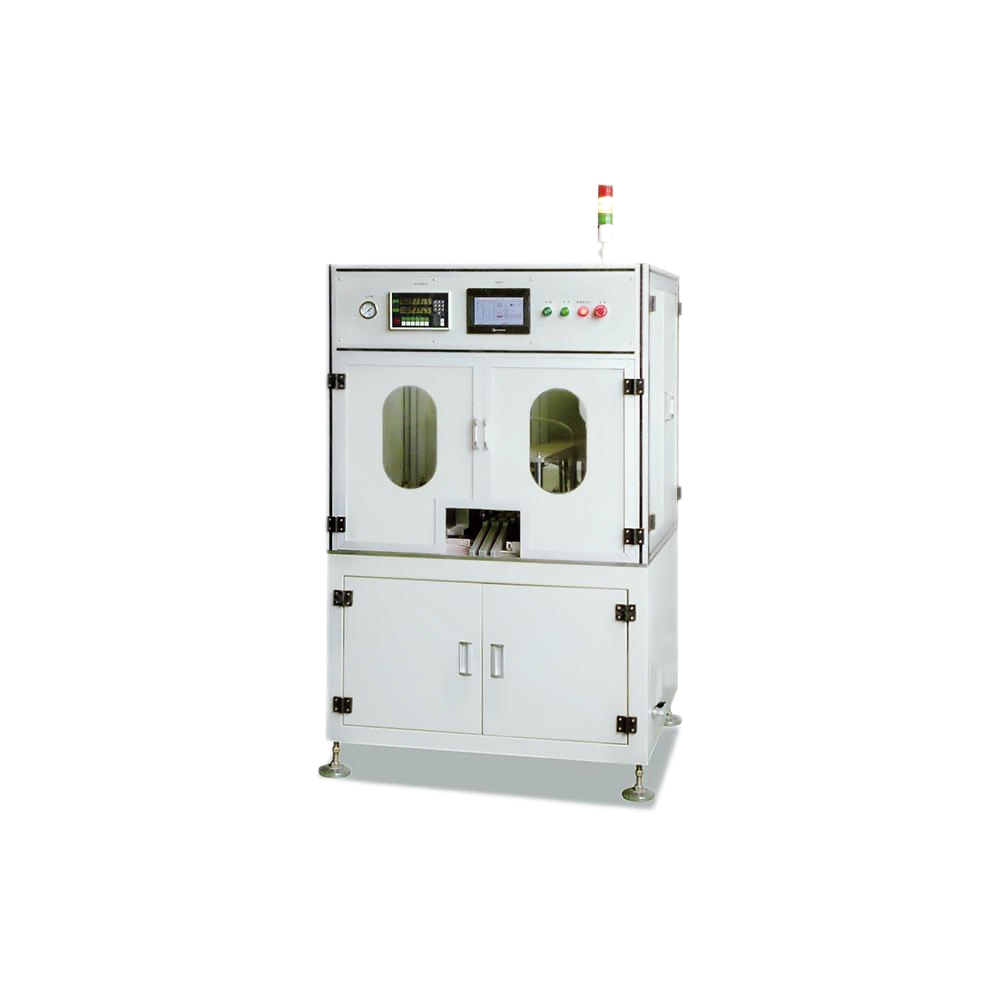

The TMAX-XZY60 is a precision battery flattening machine designed for large cylindrical batteries and supercapacitor cells. It flattens both the positive and negative sides to ensure a compact and even surface, facilitating firm laser welding to the upper and lower current collectors. This is a patented product developed in-house to meet the precision and automation needs of modern battery production.

Key Features

· Segmented flattening head design aligns aluminum foil substrate in one direction, enhancing weldability with the current collectors.

· Automated process flow: Includes automatic feeding, first and second pre-flattening, final flattening, short-circuit testing, and discharge.

· Grating ruler detection and display for precise and intuitive pressure adjustment.

· PLC control and HMI interface, enabling easy automation and user-friendly operation.

· High-precision mold design, ensuring accurate and uniform cell shaping.

· Stylish and functional design, with an aluminum alloy enclosure and geometric structure, combining aesthetics with operational convenience.

Technical Specifications

Parameter	Specification
Applicable Products	Cylindrical batteries and supercapacitors (customizable)
Air Supply	0.5–0.7MPa (adjustable)
Power Supply	220V / 50Hz
Power Consumption	0.5KW
Machine Dimensions	L1000mm × W800mm × H1600mm
Machine Weight	800kg
