Automatic Laser Stripping Machine for 18650 Cylindrical Battery Casings

I. Equipment Overview

1.1 Equipment Application

l Intended for stripping the outer casing of 18650 cylindrical batteries.

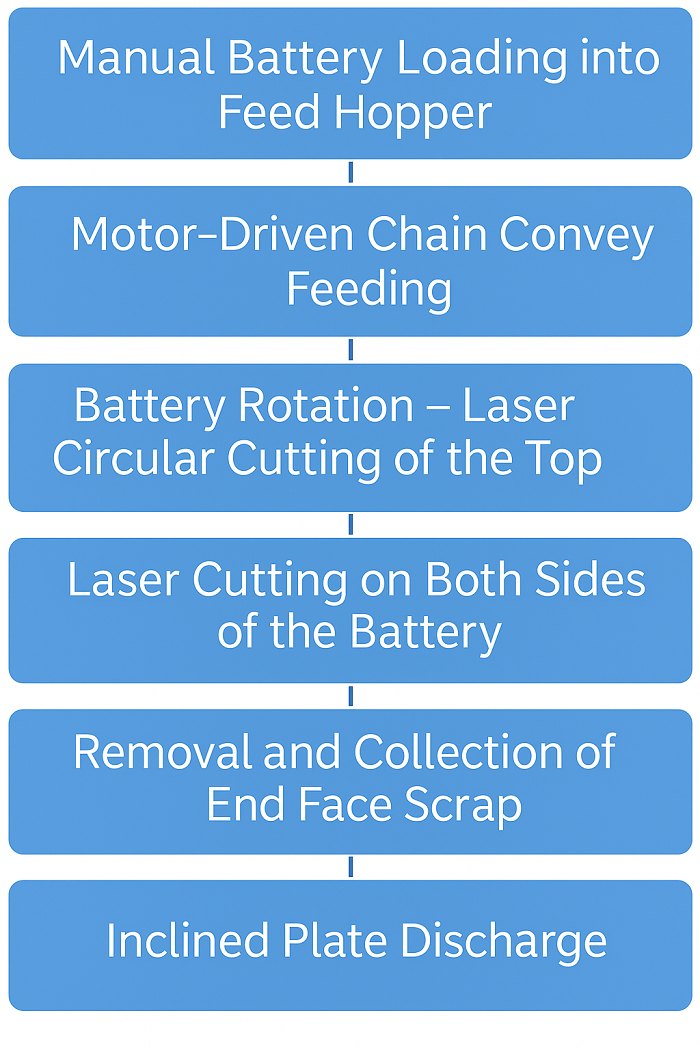

1.2 Equipment Operation Flow

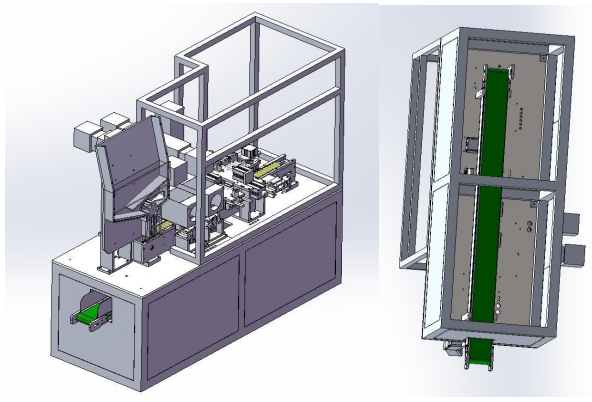

1.3 Equipment Diagram

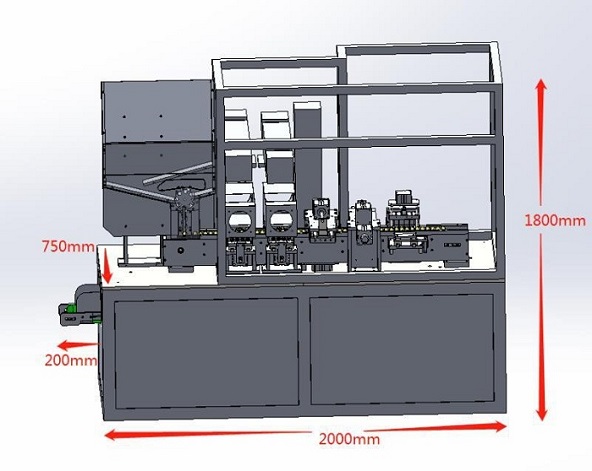

Overall Dimensions

l Laser Stripping Unit: 200 cm × 75 cm × 180 cm (L × W × H)

l Automatic Boxing Unit: 100 cm × 70 cm × 180 cm (L × W × H)

l Note: Dimensions are subject to the actual equipment.

Equipment Weight

l Total weight: approx. 1000 kg

1.4 Main Module Descriptions

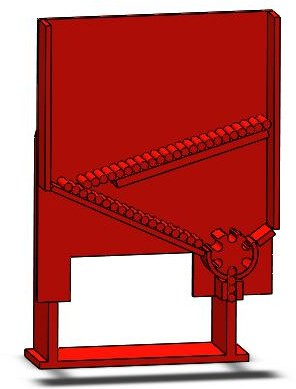

1.4.1 Manual Battery Loading into Feed Hopper

l Operator places batteries into the hopper; a feed wheel dispenses batteries into the chain conveyor.

1.4.2 Motor-Driven Chain Conveyor

l Stepper motor drives the chain to feed batteries one by one.

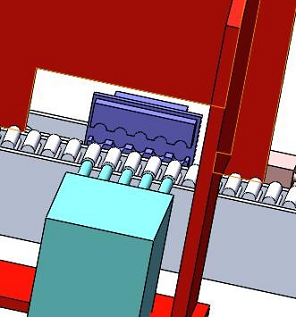

1.4.3 Laser Circumferential Cutting of Battery Heads

l Pressing mechanism holds the battery and rotates it; laser beam cuts the heads of 5 batteries simultaneously.

1.4.4 Rotary Transfer Mechanism

l Mechanical arm grabs 5 batteries, reorients them, and places them onto the second chain conveyor.

1.4.5 Dual-Side Laser Cutting

l Laser beam cuts two straight lines on each battery, centered on the body.

l Two parallel chain tracks enable simultaneous head cutting and side cutting.

1.4.6 End-Face Scrap Removal Mechanism

l Cylinders push 5 batteries into the scrap removal unit, where heads are clamped;

rear cylinders push batteries back to the track, discarding the head scrap;

scraps are collected in a bin under the workbench.

1.4.7 Steel Shell and Outer Film Separation

l Rubber plates position batteries top and bottom, increasing friction;

steel shell is pushed out for separation, leaving waste film on the track;

waste is carried down with the chain and collected in a bin under the workbench.

1.4.8 Inclined Plate Discharge

l Separated steel shells are discharged via a 1000 mm long inclined plate.

1.4.9 Automatic Boxing

l Automatically loads processed batteries into collection boxes.

1.4.10 Laser Section Enclosure with Exhaust Fan

l Laser cutting section is enclosed and equipped with exhaust ventilation.

II. Applicable Materials and Product Specifications

2.1 Supported Product Specifications
- 18650 cylindrical battery (Diameter: 18 mm, Height: 65 mm)
2.2 Process Documents
- As supplied by Party A.

III. Equipment Specifications

3.1 Performance Parameters

1. Efficiency: >60–80 PPM

2. Equipment uptime rate: ≥99% (equipment-related downtime only)

3. First-pass yield: ≥99% (equipment-related defects only)

4. Automatic counting function included

5. Material collection position provided; layout optimized for single-operator use

6. Stripped batteries must have no appearance defects

3.2 General Parameters

IV. On-Site Environment Requirements (Provided by Party A)

1. Compressed Air Pressure: 0.4–0.8 MPa (4–8 kgf/cm²), flow ≤50 L/min
2. Dust Collection: Equipment is furnished with a dust collector for collecting peeling waste; clean on a regular basis
3. Ambient Temperature: 20–50 °C
4. Relative Humidity: 5–55% RH
5. Cleanroom Level: ≥ Class 100,000; free from corrosive, explosive, or flammable gases or liquids
Power Supply: Single-phase AC 220 V, 50 Hz; voltage fluctuation ≤ ±10%; power consumption 2.5 kVA
