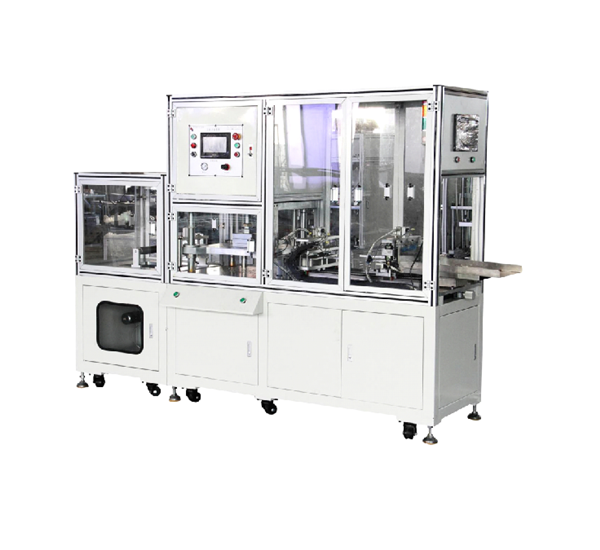

Automatic Pouch Cell Die Cutting Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-Die Cutter
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Pouch Cell Die Cutting Machine



Features

1.The feeding length can be preset, the electronic ruler is displayed, and the touch screen setting is adjusted.

2.Aluminum plastic film floating roller tensioning, automatic discharge, with material detection function.

3.Configure 10T gas-liquid booster cylinder, servo stretch forming.

4.The robot servo feed, the length can be set through the screen.

5. The position of the cutter can be adjusted according to the length of the product, and the gap of the cutter can be pre-stressed and adjusted.

6. Using programmable controller PLC to achieve automatic control, touch screen to achieve man-machine dialogue, easy to operate settings.

7. The mold part is provided with light curtain safety protection, and the necessary door opening protection for the visual door.

8. With output statistics.

9. There are manual,automatic operation function, fault alarm function.

10. Combined frame: square through the lower frame, aluminum profile upper frame.

Specifications

Voltage

AC220V/50Hz

Power

0.5KW

Compressed Air

≥0.6MPa 100L/min

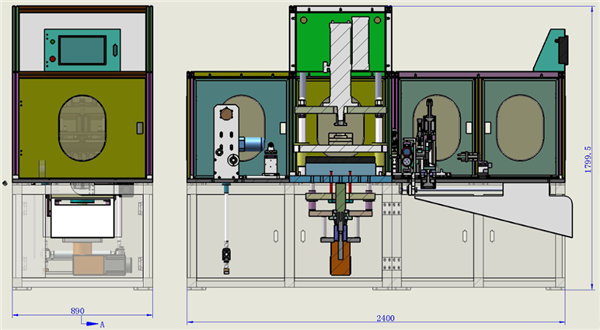

Dimension

L2350 *W740 * H1800mm

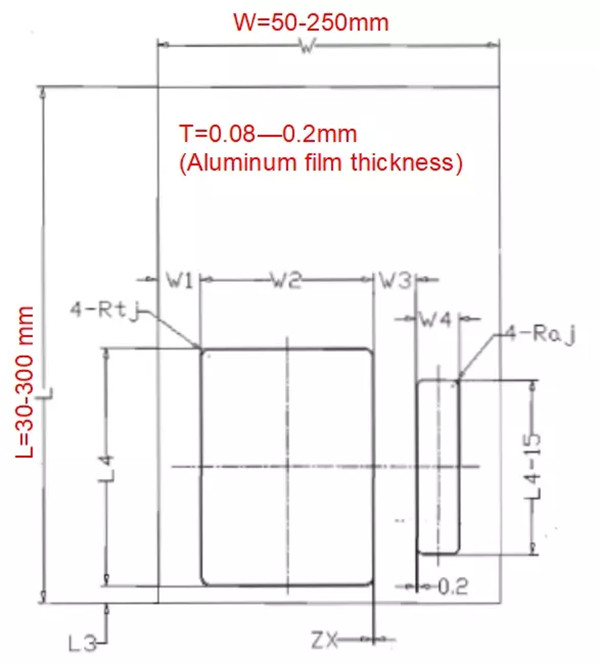

Single Section Maximum Size

L1650 × W740 × H1800mm

Parallelism between the lower plane of the die shank and the bottom plate

0.2mm

Aluminum Plastic Film Tension

Floating roller tension

Punching Depth Accuracy

±0.1mm

Feeding Accuracy

±0.2mm

Electronic Ruler Accuracy

0.01mm

Cutting Knife Life

1 million times (repair)

Equipment Ccapacity

500-700 / H (depending on product size and mold selection)

Applicable Mold

Three-piece mold and spring mold can be used (with 1 set of mold)

Activity Rate

95%

Pass Rate

99.5%

Pressurized Cylinder

10T

The Diameter of the Coil

<Φ350mm
