Automatic Pouch Cell Forming Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-A-011
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Pouch Cell Forming Machine



This equipment is suitable for the flexible packaging aluminum-plastic film auto pouch forming. Mainly included the aluminum-plastic film auto put volume, floating roll tension control, automatic pouch forming, auto fixed-length pull material, auto cutting, and other functions.

Features
 Pressure cylinder clamping, servo pouch forming, depth is adjustable
 The cutter location parameter settings can be touch screen
 Servo fixed-length puller
 Finish Two pieces film in one time
 Gas rose axis vertical cantilever plate is placed.


Technical Parameters(for reference)

ITEM

CKA200

CKA280

measures

2230*695*2020mm(L*W*H)

3170*960*2175mm(L*W*H)

Weight

About 2T

About 3.5T

Power

AC220V/50HZ, 2.5KW

AC220V/50HZ, 2.5KW

Air source

0.6Mpa,100L/Min

0.6Mpa,100L/Min

Applicable range

L:370mm,W:175mm,D:10mm

L:370mm,W:175mm,D:10mm

Vacuum source

18PPM

100-500pcs/hour

Capacity

99%

99%

Action

2230*695*2020mm(L*W*H)

3170*960*2175mm(L*W*H)

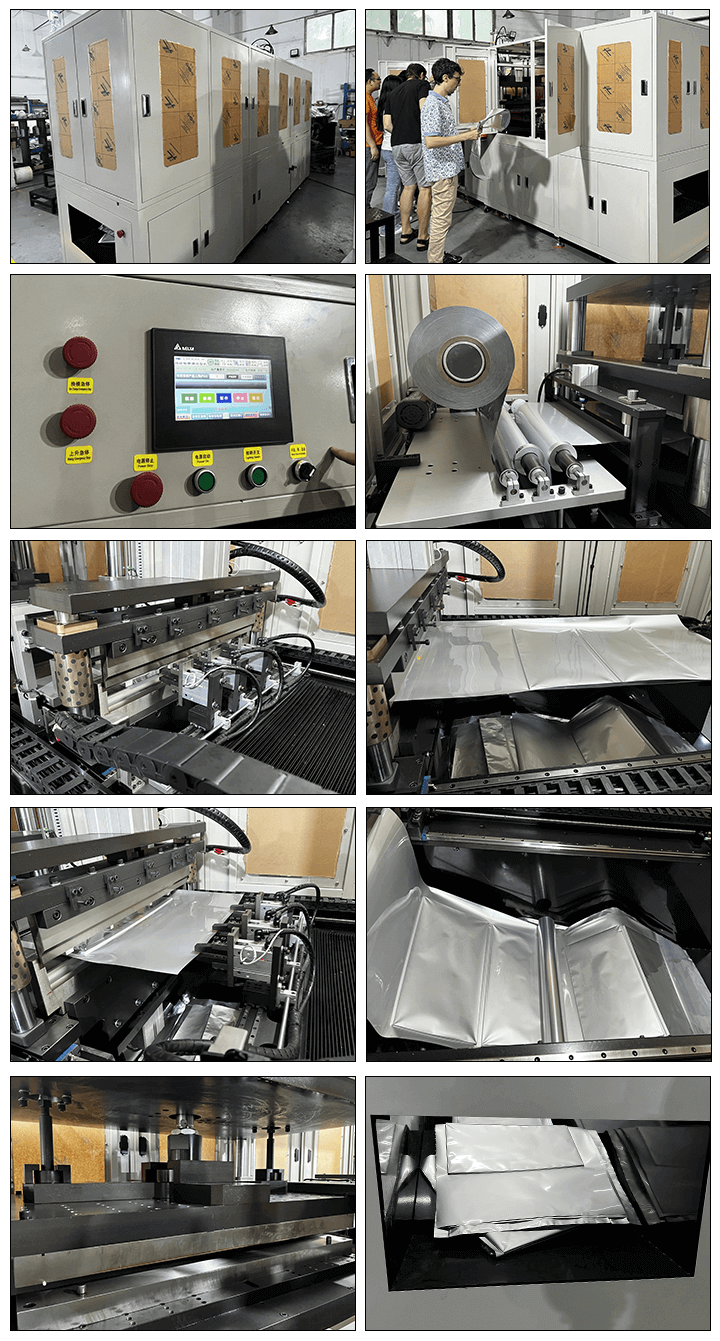

Pouch Cell Forming Machine
