Automatic Prismatic Cell Electrolyte Filling Machine

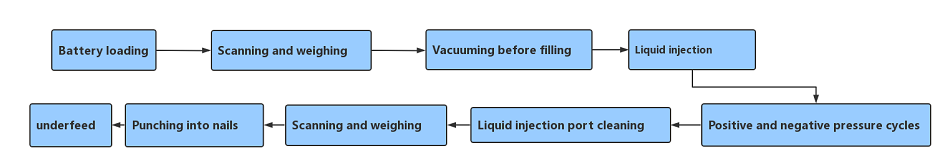

Workflow

Specification

Project	Parameters
Resting method	Isobaric static or atmospheric static
Vacuum holding pressure	5KPA value change within 60S
Injection accuracy	Injection volume ≥125g±0.8%; Injection volume <125g±1g;
Production efficiency	≥12ppm
Qualification rate	≥99%
Crop rate	≥98%
Dimension	W10000 × L6500 x H2500mm
Weight/load	>750Kg/M2
Power supply	AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz
Compressed air	0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min

Model	TMAXZTHZYX-300
Cell height	90~220mm
Cell width	100~200mm
Cell thickness	20~80mm

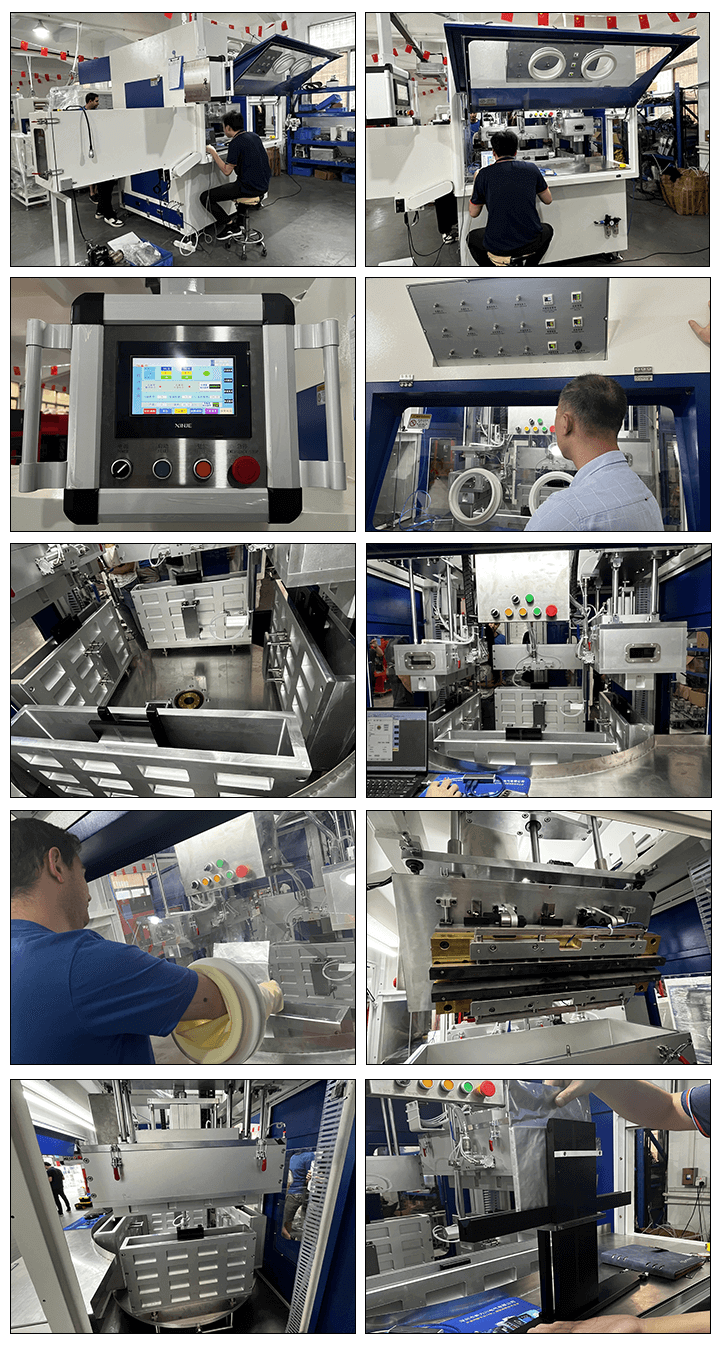

Production Assembly Plant
