Automatic Roll-to-Roll Electrode Slitting Machine for Cathode/Anode Cutting

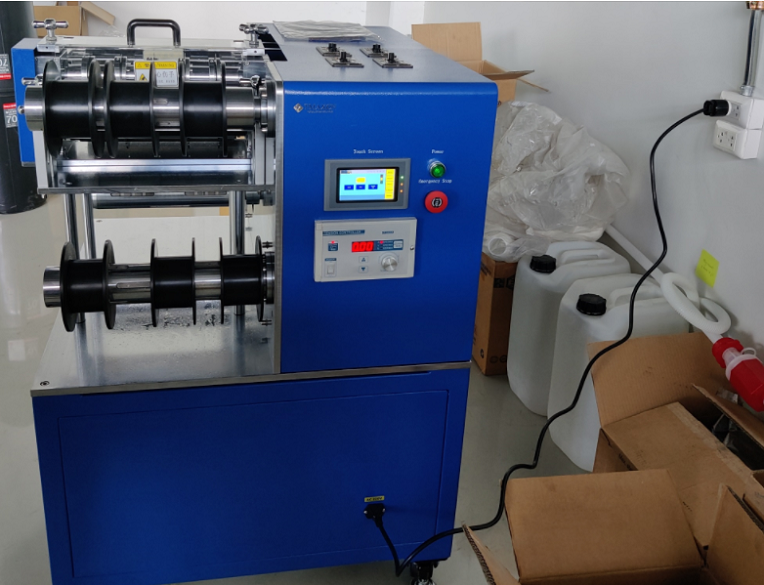

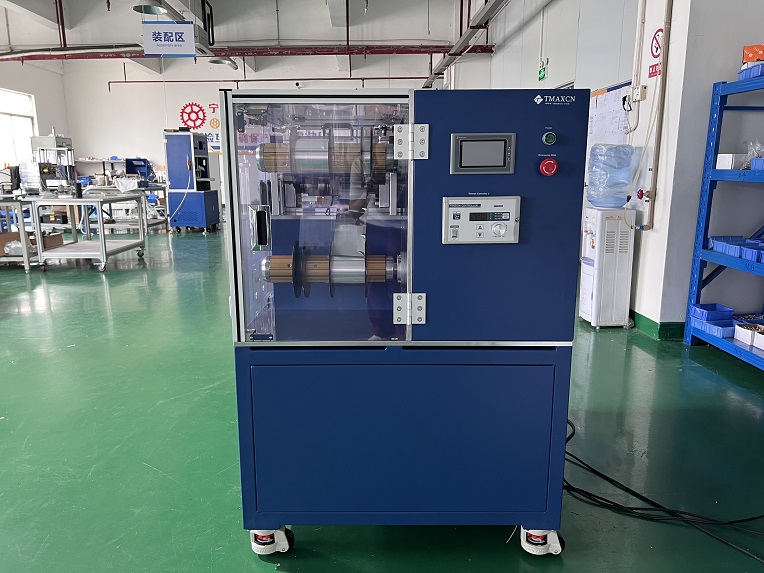

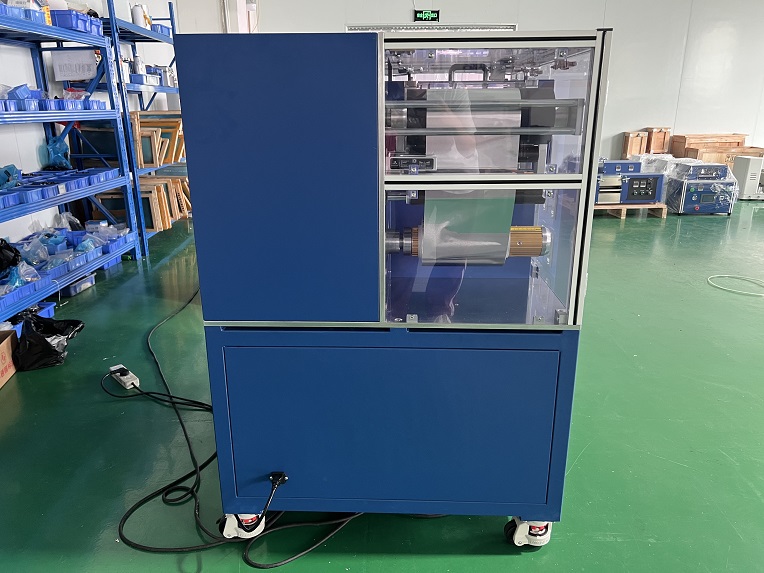

Introduction

Two or more continuous slitting process of roll-shaped material is adopted. The equipment is equipped with a precision knife holder, which can realize extremely high-precision foil slitting, and is widely used in lithium battery, metal foil, optical film and other functional film industries.



Main features

*Ultra-fine tungsten steel blade, good cutting quality and long service life;

*The slitting width has high precision, and the finished product has no burrs, waves, and indentations;

*The amount of knife can be adjusted, and the ratio of knife speed to material linear speed can be adjusted;

*By adjusting the angle of feeding and discharging materials, it can be adapted to the slitting of materials of different materials and thickness values;

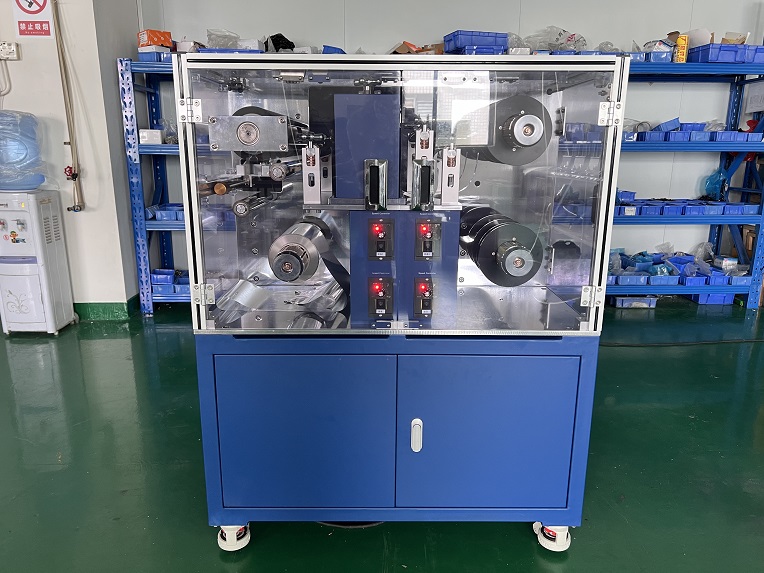

*Single vertical board structure, independent knife holder, equipped with dust removal device;

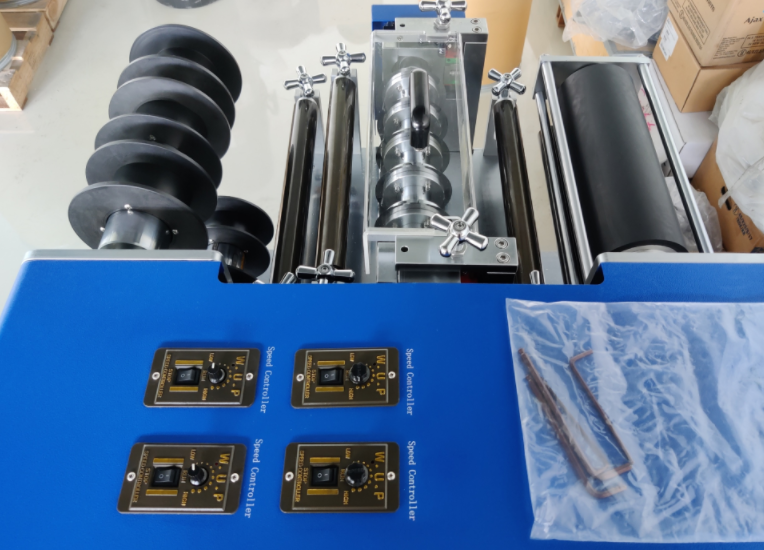

*Upper and lower round knife structure, the slitting width can be adjusted by replacing the spacer;

*The winding tension is automatically controlled, and the upper and lower shafts are independently adjustable within 50N;

*PLC control, HMI operation, convenient and easy to use;



Technical parameters

Slitting method	Single-piece rolling
Cutter type	Upper and lower round knives for cutting
Width adjustment	Change separator adjustment
Cutting thickness	100-300um
Slitting blade	Ultrafine alloy tungsten steel, diameter 100mm
Slitting width	20-300mm
Burr condition	≤25um
Amount of the knife	0.2-0.4mm adjustable, dial indicator display
Slitting speed	Max. 4m/min
Power supply	Voltage single-phase 220V AC±10%, frequency 50Hz/60Hz, power 1kW
Environment	Recommended environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference

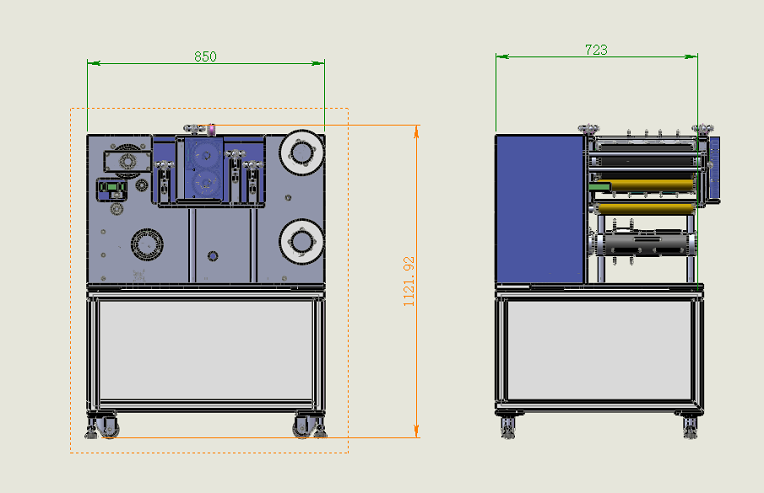

Dimensions	L900mm*W980mm*H450mm
Weight	About 100kg
