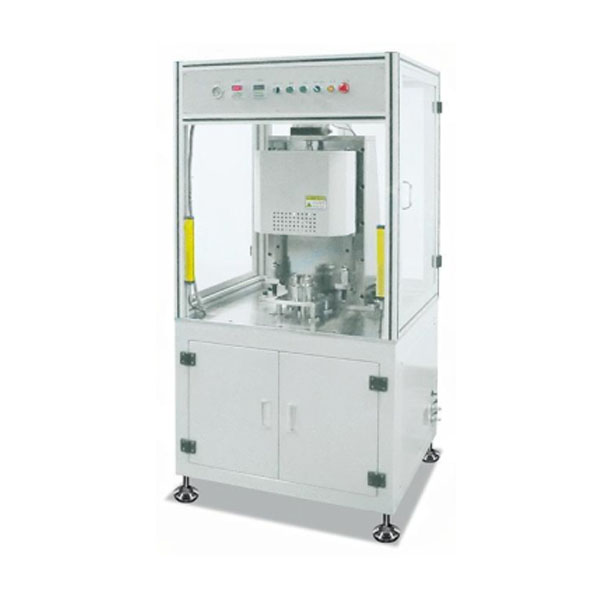

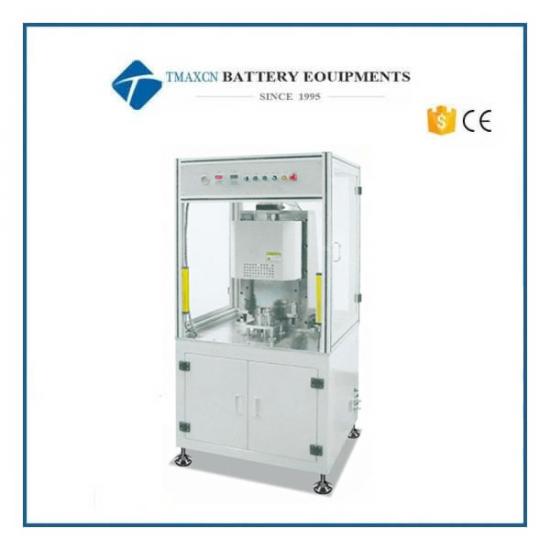

Automatic Rotary Curling and Sealing Machine for Cylindrical Supercapacitors

Automatic Rotary Curling and Sealing Machine for Cylindrical Supercapacitors

Application

The Supercapacitor Rotary Sealing Machine is engineered to automatically perform rotary sealing and edge curling on the casings of cylindrical batteries and supercapacitors.



Key Features

· Clamp-sleeve fixation holds products securely, minimizing vibration and ensuring high concentricity for uniform rotary sealing.

· High-precision spindle guidance provides accurate and stable sealing dimensions.

· PLC control with HMI interface enables seamless automation.

· Equipped with safety light curtain and protective casing for safe operation.

· Compact, aesthetically designed geometry for ease of use and integration.

Technical Specifications

Parameter	Specification
Applicable Products	Cylindrical batteries, supercapacitors (customizable per request)
Air Supply	0.5–0.7 MPa (adjustable)
Power Supply	220 V / 50 Hz
Power Consumption	1 kW
Dimensions	L 900 × W 900 × H 1700 mm
Weight	Approx. 600 kg
