Automatic Stacking Machine For Pouch Cell Electrode Making

SPECIFICATIONS

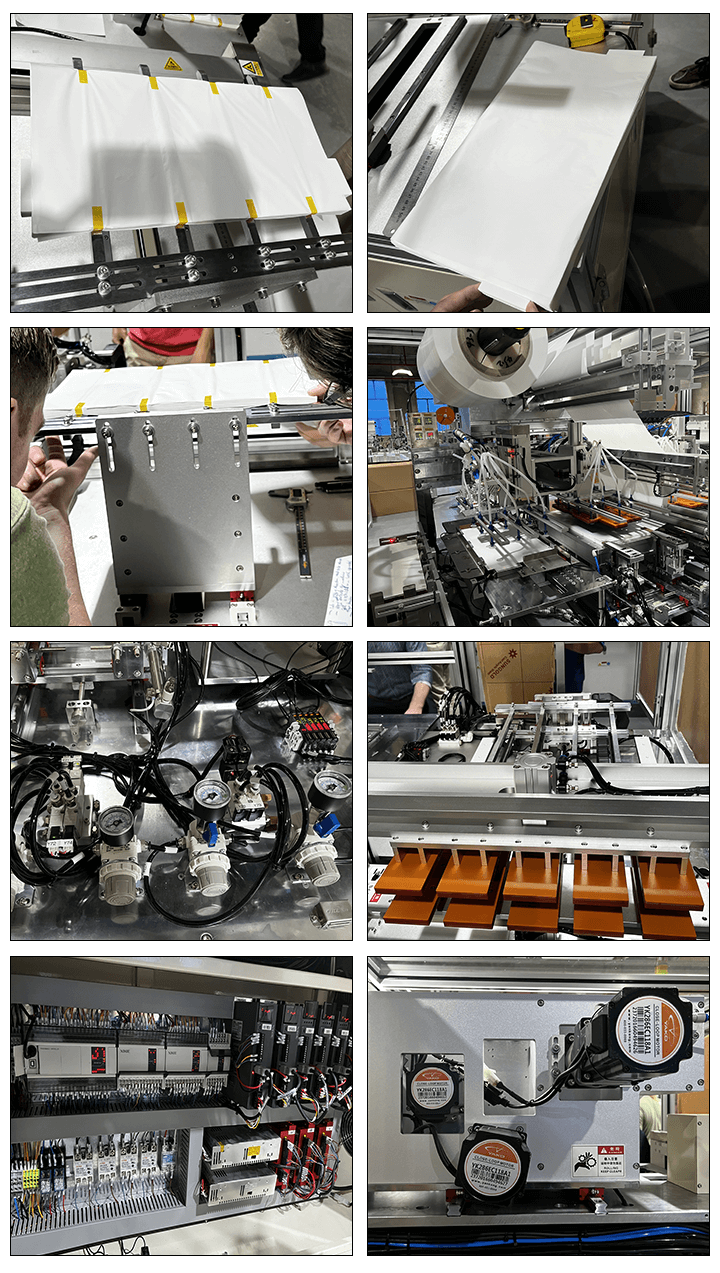

1 This Battery stacking machine is a full-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

2 The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination by Mechanical arm.

3 It is also equipped with Tape sticking function and Conveyor belt to take the finished battery core out automatically.

Model	TMAX-03-200-AS
Source voltage	AC 220V, 50HZ
Power	1.2KW
Air compression	0.6-07MPa, Vacuum -0.095MPa
Suitable battery size	≤200*120*10mm
Separator width	200mm
Fixture size	200mm
Accuracy of struggle	0.05mm
Capacity	1.8s/pcs
Dimension	2500*1800*1750mm
Weight	1200kg
