Item NO.:
TMAX-ZS-1010Payment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:
CE ROHS Certificate

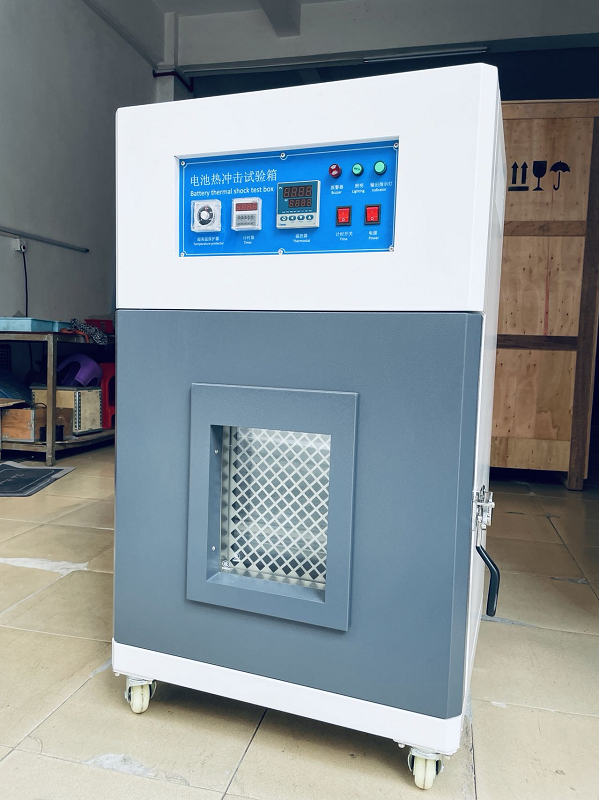

Battery Thermal Shock Testing Chamber
I. Product Overview:
The Battery Thermal Shock Test Chamber is designed to achieve a specified test temperature within a set time and maintain it for a defined duration, using a hot air circulation system to ensure uniform temperature distribution throughout the chamber.
II. Compliance Standards:
UL 2054
UL 1642
SJ/T 11169
SJ/T 11170
IEC 62133
GB/T 18287
QC/T 743
QC/T 744
III. Product Parameters
|
Temperature Range |
Room temperature to 200°C |
|
Temperature Display Accuracy |
0.1°C |
|
Temperature Stability |
±1.0°C |
|
Temperature Uniformity |
±2°C |
|
Heating Rate |
(5 ± 2)°C/min |
|
Temperature Controller |
Button-style controller or TEMI880 temperature controller |
|
Internal Chamber Material |
Stainless steel plate |
|
External Chamber Material |
Cold-rolled steel plate with powder coating |
|
Insulation Material |
High-efficiency compressed glass wool |
|
Safety Features |
Over-temperature alarm, MCCB overload protection |
|
Exhaust Vent |
Blade-type (adjustable airflow) |
|
Air Circulation System |
Convection-style air circulation |
|
Internal Chamber Dimensions |
400 x 400 x 450 mm (L x W x H) |
|
External Chamber Dimensions |
650 x 530 x 920 mm (L x W x H) |
|
Weight |
Approximately 80 kg |
|
Power Supply |
AC 220V, 50/60 Hz |
