Filtration System for NMP Vapor Solvent Processing System Waste Gas Treatment Equipment

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-NMP-2
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Filtration System for NMP Vapor Solvent Processing System Waste Gas Treatment Equipment





Technical Parameter

It is mainly used to filter and treat the internal solvent of waste gas produced in the drying process of coating machine to realize the function of dust removal and exhaust gas purification.



Model

TMAX-NMP-2

Work mode

Continuous work

Processing capacity

600 m3 / h

Inlet temperature

≤ 150 ℃

Recovery rate

≥ 80%

Recycled object

Water-soluble solvent gas

Processing gas

Gas

Scope of treatment

Water-soluble solvent

Contact material

SUS304 stainless steel

Gas emissions

External piping

Access volume

600m / 3 / h

Temperature

0-40 ℃

Vibration and shock

There are no visible sources of vibration around

Explosion protection

Explosion-proof treatment

Three-phase

380 VX 50Hz

Power

1.5kW

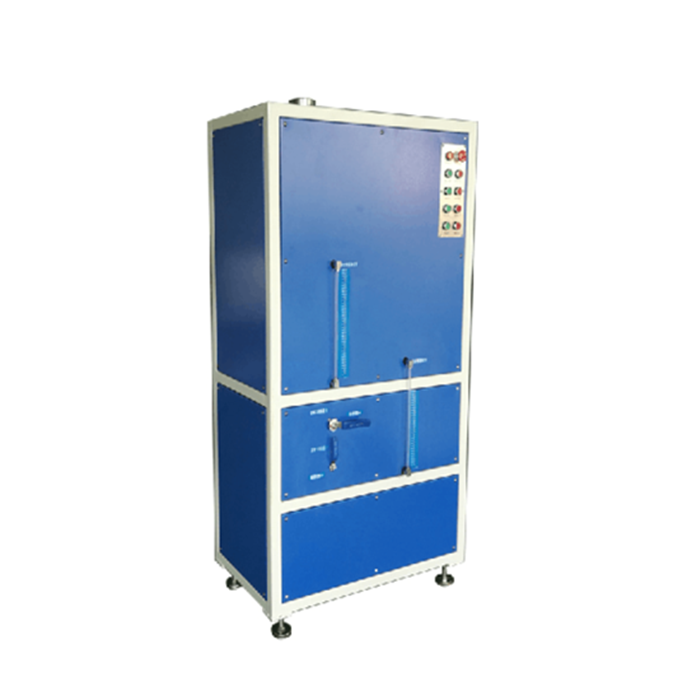

Solvent Processing System
