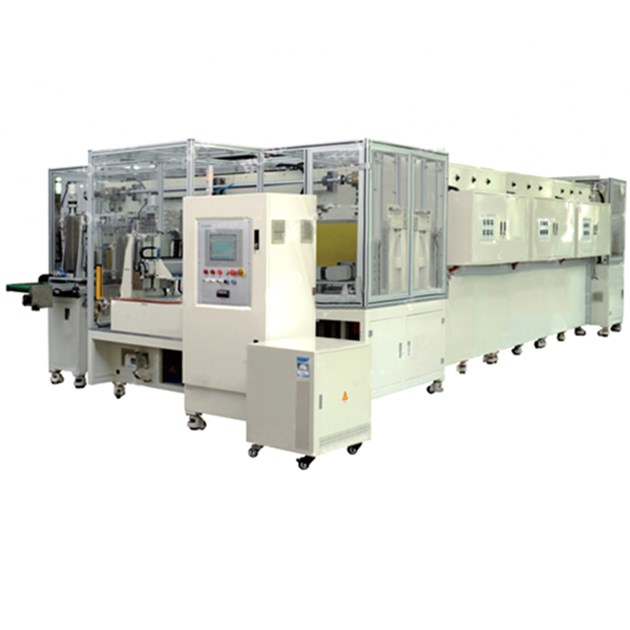

Fully Auto Baking Tunnel Furnace for Production Line

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-A-022
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Fully auto baking tunnel furnace for Production Line


Functions
 Suitable for auto load and unload Baking fixture, Baking oven, Baking furnace cooling, in order to achieve high temperature polymerization, standing.

Features
 Manual load materials to jig, manipulator clamp feeding to the Baking step by step from the rotary table
 Baking fixture in precision positioning and auto calibration devices are removed from the institutions
 Baking jig locked by servo control
 Baking furnace and cooling furnace use plate chain conveyor, closed loop control
 Baking fixture tensioning force servo control, tensioning force within the touch screen settings, tensioning force accuracy ±0.25%
 Baking furnace temperature control precision of ± (except within one meter distance from the security door)
 After Baking the battery thickness accuracy: plus or minus 3.0% T (T is average thickness of the battery)
 After cooling, the temperature below 40  when Baking fixture
 Head component structure adopts movable roller structure, convenient maintenance, and dismantling

Technical Parameters(for reference)

ITEM

MAIN PARAMETERS

Measures

(L*W*H): 9800*3500*2350mm

Weight

About 10T

Power

AC380V/50HZ, 72Kw

Air source

0.6Mpa,150L/Min

Vacuum source

-85Kpa,60L/Min

Applicable range

L:50-180mm,W:30-130mm,T:2-10mm

Capacity

15-20PPM(Baking time:4 hour,4pcs in one time, Thickness5mm)

Cold source

Cooling water,10-18, head of delivery:20M

Action

99%
