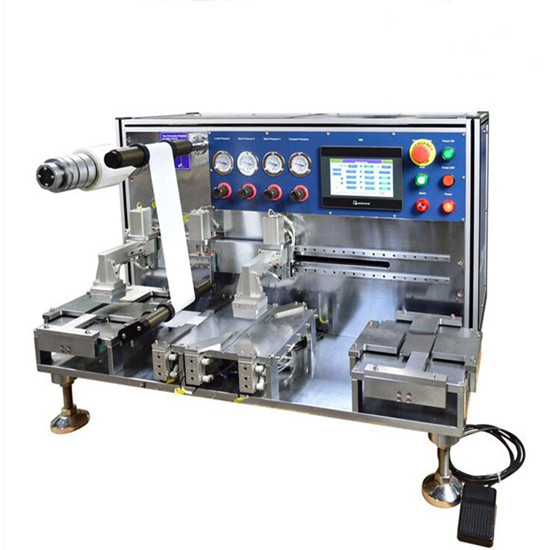

High-accuracy Automatic Pouch Cell Stacking Machine with PLC Touch Screen

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-111A-E
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

 High-accuracy Automatic Pouch Cell Stacking Machine with PLC Touch Screen



TMAX-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.


Features

1. PLC Touch Screen Control allows easy condition setting

2. Continuous "Z" fashion stacking with a separator

3. Auto electrode pick-up & stacking via vacuum suction manipulator

4. Adjustable mechanical fixture for accurate electrodes positioning

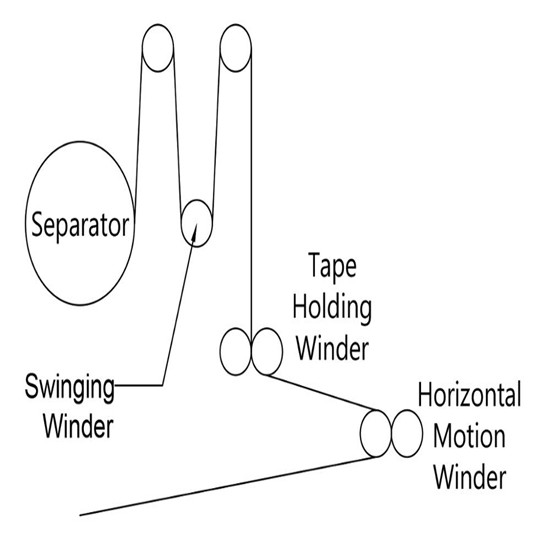

5. Unreeling rotors for separator film feeding

6. Auto-tension control for separator film delivery

7. One set of 80x50mm stocking die fixture is included for immediate use.


Specifications

Working Voltage

AC220V 50/60Hz

Power

1KW

Stackable Size

200x150mm

Stackable Layers

Upto 500 layers

Max. Electrode Thickness

Piled up thickness < 30 mm

Aligning Accuracy

±0.5 mm for stacked electrodes

Acceptable Separator Roll Size

I.D>3'' (76mm)
O.D<9.8'' (250mm)

Stacking Fixture

One customized stacking die fixture is included for immediate use.
Allowable customization size: Max.  200mm x 200mm; Min.  80 mm x 50 mm

Vacuum Pump

An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.

Suggested Air Pressure

0.5 - 0.8 MPa (Air compressor is not included in the standard package.

Product Dimensions

960 mm L x 680 mm W  x 690 mm H

Weight

500 kg

Compliance

CE Certified

Warranty

One year limited warranty with lifetime support
