Hydraulic Crimper Crimping Machine for All Types of Coin Cells

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-MSK-110
  • Order(MOQ):

    1
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Hydraulic Crimper Crimping Machine for All Types of Coin Cells



TMAX-MSK 110 is a new design and CE Certified coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.  We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!



Standard

Crimping Die

1 One set of crimping die for CR2032,CR2025,and CR2016

2 Optional die available from product option for crimping CR2325,CR2450,AG3,AG5

3 PTFE Anti-Corrosion Core prevents coin cells from being short circuited

Advantages

1 The lower die with high precision positioning ring spacing, control batteryseal height

2 The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out.

3 By using aluminum alloy and high strength steel,

surface after the environmental protection electroplating processing

will never rust

Rocker Pressure

<6kg

Max Pressure

200kg/cm2

(The hydraulic drive pressure up to 8T, the battery sealing no

vibration, no leakage)

Working Pressure

80-100kg/cm2

Dimension(L*W*H)

232*170*330mm

Weight

28kg

Shipping Weight

35kg

Warranty

Two Year limited warranty with lifetime support

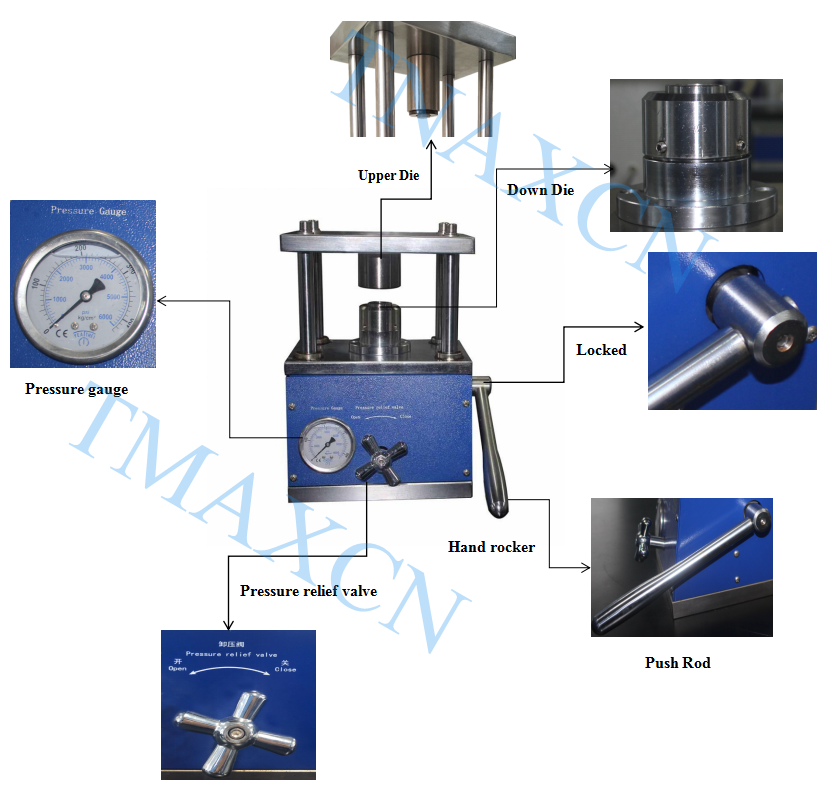

Reference Pictures

1. Adjusted sealing die for CR2016,2015,2032 coin cell

2. Optional die for other model battery and PTFE Anti-Corrosion Core



Coin Cell Crimping Machine
