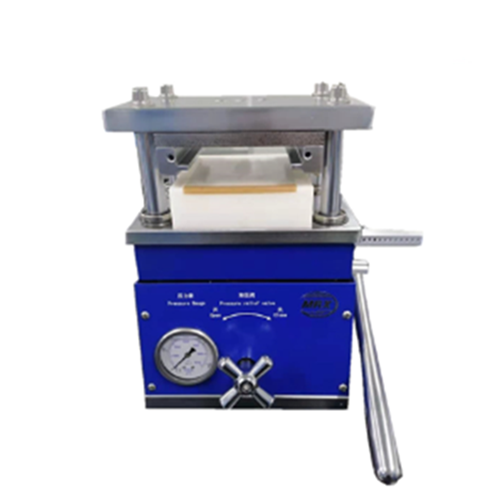

Hydraulic Electrode Die Cutting Machine For Pouch Cell Electrodes Cutter

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-XMQ100
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Hydraulic Electrode Die Cutting Machine For Pouch Cell Electrodes Cutter


Introduction

This product is suitable for die-cutting and forming of battery anode and cathode sheets, as well as for die-cutting of lithium chips, and can be used in a glove box.


Main features

*Small size, easy to operate, can be placed in a glove box for operation.

*Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper limit of the pressure can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.

*Built-in pressure gauge can observe and accurately control the sealing pressure.

*Using hydraulic drive, the pressure can reach 8T, die-cutting without vibration and leakage.

*It is convenient and quick to change the knife mold;

* Long tool life, normal use ≥ 30,000 times;

*No quality defects such as burrs, powder falling, and indentation;

*Adopting four guide pillar structure, sliding up and down smoothly and high precision;

* Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.


Instructions

Put the electrode sheet into the die-cutting position, and then hold the oil unloading valve handwheel, tighten it in a clockwise direction, and rotate it to the limited position. Pry the hand rocker up and down continuously, when the jack rises and pressurizes, the movable template drives the die-cutting knife group to automatically cut the electrode sheet into shape. Hold the oil unloading valve hand wheel and unscrew the electrode sheet by half a turn counterclockwise. The mold will automatically open and take out the electrode sheet to complete.


Specification

Max. Punching size

120mm*100mm(can be customized as requirement)

Punching accuracy

±0.1mm

Max. pressure

8T

Die cutting stroke

35mm

Structural material

High-strength chrome steel, the surface will never rust after environmental protection plating and spraying

Dimensions

223mm*170mm*325mm

Weight

25kg
