Iron Removal and Slurry Transfer Filtration System

I. Flow Diagram & Description:

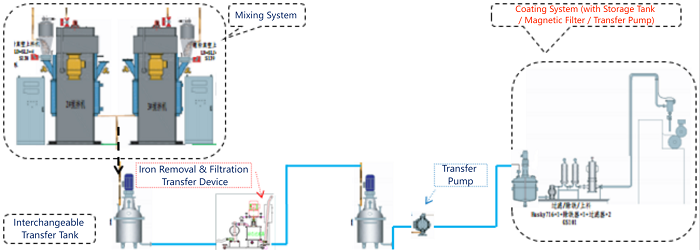

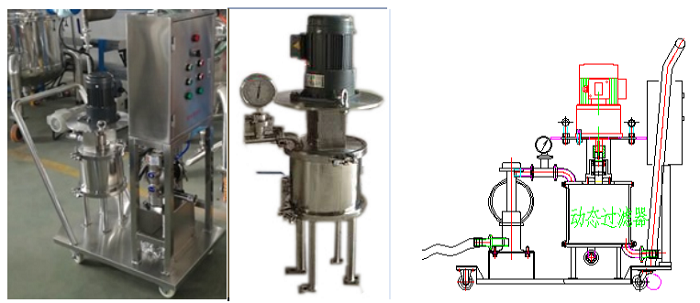

#1 Scheme:

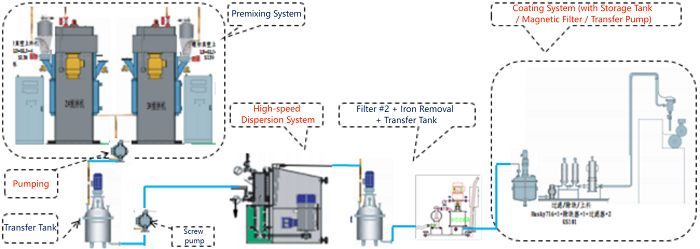

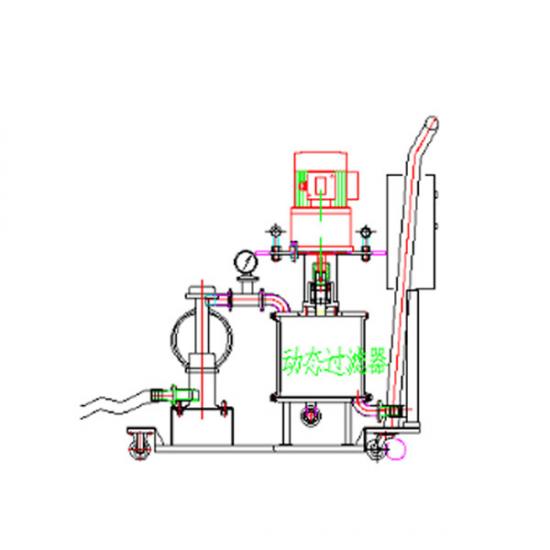

#2 Scheme:

1. Slurry stored in the transfer tank is pumped by a diaphragm pump through filtration and iron removal equipment via pipelines, and then delivered to the hopper of the coating machine.
2. All components are connected with quick-disconnect fittings and placed on a stainless steel tray. The transfer of slurry is controlled by the piping and control system.
3. Important Note: The connecting pipeline valves and level control devices between this system and the coating hopper/storage tank must be installed and managed by the end user and coating machine supplier, as they are closely associated with your facility and the selected coating line.

II. Equipment Composition & Capacity:

No.	Name	Model/Specification	Unit	Qty	Remarks
1	Pneumatic double diaphragm pump	3/4″ – S.K.Y. or Graco	pcs	1	With standard ISO quickconnect
2	Filter cartridge	Φ76 × 200 mm	pcs	1	100–250 mesh
3	Magnetic rod	Φ25 × 156 mm	pcs	3	10,000 Gauss each
4	Pressure gauge	Ø60 mm – 1 MPa	pcs	1	SUS304 stainless steel
5	Squeegee (scraper)	3piece scraper set	pcs	1	Squeegee material: PTFE (Teflon); Spring in Japanese stainless steel
6	Connection tube/valve/fittings	Ø25 mm	set	1	SUS304 stainless steel
7	Stainless steel tray	Nonstandard (L×W×H) mm	pcs	1	SUS304 stainless steel
8	System control cabinet	Level, pressure, alarm, control	pcs	1	SUS304 stainless steel
9	Conveyance capacity	Operating capacity: 20 L/min	–	–	–

III. Other Instructions & Cautions:

1. Shaft seal, squeegee, and filter cartridge are consumable parts.

2. This system is intended for a single slurry formulation in continuous production—frequent batch changes or intermittent operation should be avoided.

21. When changing slurry types, flush pipes and magnetic filters, and replace key parts (filter cartridge, mesh), and preferably replace piping too.

22. During normal operation, ensure the pipelines remain filled with slurry to prevent air ingress and moisture, which can cause slurry solidification.
23. External dimensions: 500 mm × 1000 mm × 900 mm (L × W × H).
