Lab Bench-top Vertical Square Ball Mill

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-DSP-LBPBM05A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

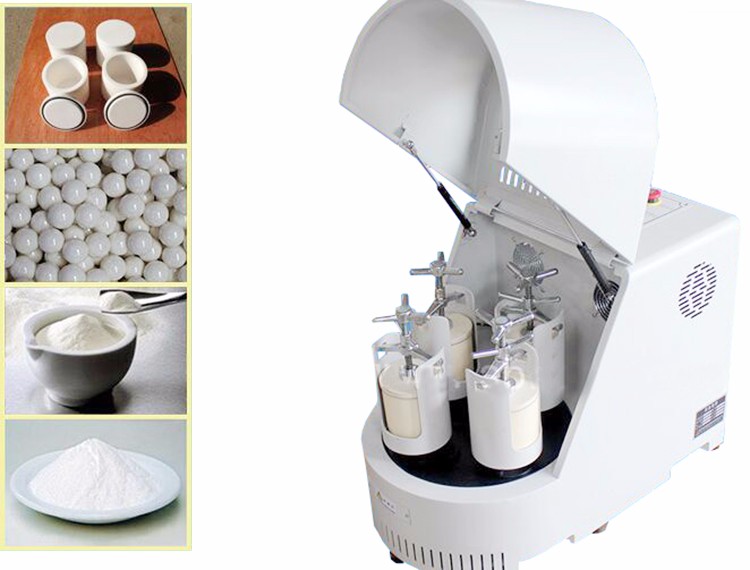

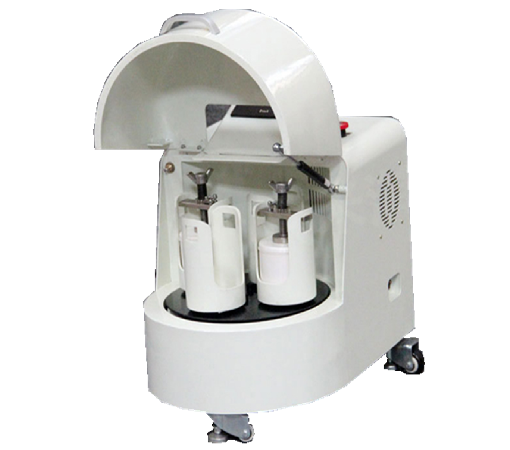

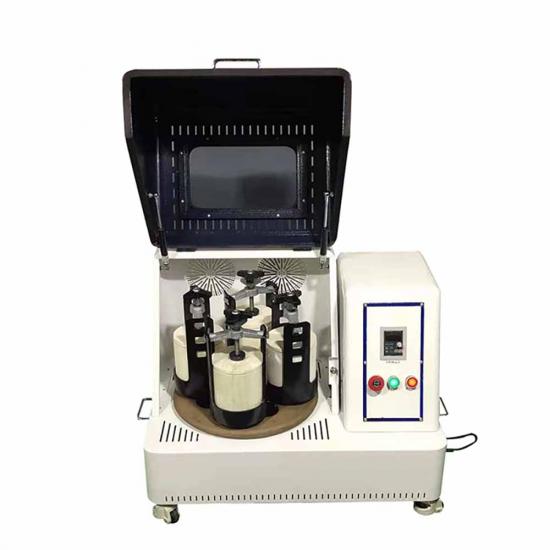

Bench-top Vertical Square Lab Ball Mill

1. Brief introduction of vertical square planetary ball mill

Vertical square planetary ball mill is a necessary device for mixing, fine grinding, small sample preparation, new product development and small batch production of high-tech materials. Our planetary ball mill is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research institutions, colleges and universities, and enterprise laboratories to obtain research samples (four samples can be obtained at the same time for each experiment). It is equipped with a vacuum ball mill tank, which can grind test samples under vacuum.



2. Application

Vertical square planetary ball mill is widely used in geology, mineral industry, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobaltic acid, lithium manganate, catalyst, fluorescent powder, long afterglow phosphor, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, etc Ceramics, nano materials, wafer ceramic capacitors, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products.



3. Features

The equipment shell adopts square design elements, high-precision die stamping, generous and delicate, high-end and stable; the machining parts adopt numerical control processing technology, the planetary disk is integrally cast and formed, and the transmission gear adopts precision gear of special material to ensure the stable and quiet operation of the equipment at high speed; the grinding can pressing device is convenient, safe and reliable.


4. Specifications

Transmission

Gear transmission

Work

 Two or four tanks simultaneously milling

Max sample loading capacity

2/3 of Tank volume

Tank volume

Each tank :0.05L-50L, total volume :0.2L-20L

Feed size

Soil material ≤10mm, other material ≤3mm

Discharge size

Mix 0.1um

Speed ratio (revolution: Rotation)

1:2

Speed (rotation)

 0-900 r / min (ordinary), 0-1400 rev / min (high-speed type);

Velocity modulation way

Stepless speed regulation

Speed Accuracy 0.2 rev / min;

Programmable control

Ball mill using high-tech micro-computer chip control,

 can set the program forward and backward alternately

 run (0-999min) and forward, pause, reverse, pause,

forward (0-999min) alternate operation, particularly

suitable cooling or if you need to run it intermittently

Maximum continuous working time (full load)

72 hours (timer 0-9999h)

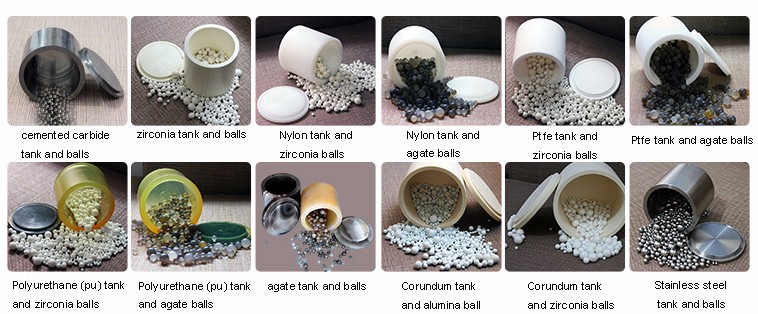

Various  optional materials of milling tank

Agate, alumina corundum ceramics, zirconia ceramics,

silicon nitride ceramic, silicon carbide ceramic,

 stainless steel, high wear-resistant steel,

 manganese steel, nylon, PTFE,

polyurethane, carbide, crystal glass,

and other special metal materials and so on;

Optional milling media

Agate, alumina, zirconia, silicon nitride, silicon carbide,

 stainless steel, high wear-resistant steel, manganese steel,

 nylon, polyurethane, carbide, glass, and other special metals, etc.

Optional milling environmental conditions

Vacuum ball milling, the inert gas milling,

cold milling, ball milling high temperature



We can provide different capacity of planetary ball mill according to your requirement.

Model

Power supply

Motor power

Converter power

Operating time setting

(min)

Positive and negative alternating operation time(min)

Adjustable speed

Revolution

(rpm)

Adjustable speed

Rotation

(rpm)

Noise

<db

XQM-0.2

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-0.4

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-1

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-2

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-4

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-6

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-8

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

60db

XQM-10

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

60db

XQM-12

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

65db

XQM-20

380V 50HZ

4KW

1-9999

1-999

25-215

50-430

65-db

XQM-40

380V 50HZ

5.5KW

1-9999

1-999

20-195

40-390

68db

XQM-60

380V 50HZ

7.5KW

1-9999

1-999

27-174

40-260

68db

XQM-100

380V 50HZ

11KW

1-9999

1-999

27-160

40-240

68db



Model

Capacity

Specification of milling tank

Qty

XQM-0.2

0.2L

50ml

4 set

XQM-0.4

0.4L

50ml-100ml

4 set

XQM-1

1L

50ml-250ml

4 set

XQM-2

2L

50ml-500ml

4 set

XQM-4

4L

250ml-1L

4 set

XQM-6

6L

lL-1.5L

4 set

XQM-8

8L

1L-2L

4 set

XQM-10

10L

1L-2.5L

4 set

XQM-12

12L

1L-3L

4 set

XQM-20

20L

2L-5L

4 set

XQM-40

40L

5L-10L

4 set

XQM-60

60L

10L-15L

4 set

XQM-100

100L

20L-25L

4 set



Product Detail Images


Planetary Ball Mill
