Item NO.:
TMAX-WVS1000Payment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:
CE ROHS Certificate

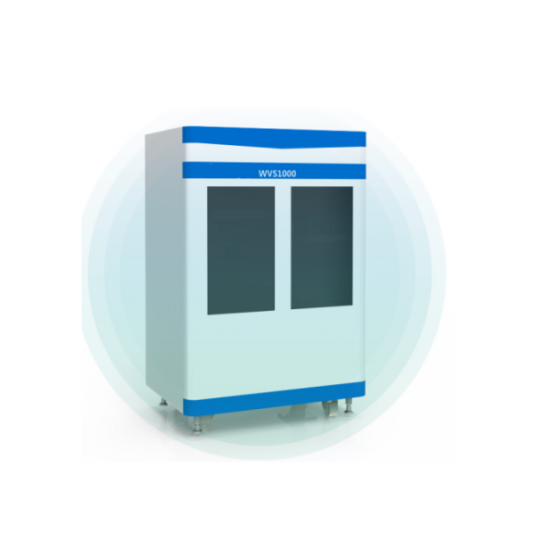

Laboratory fully automatic wet powder vibrating screen system
Introduction

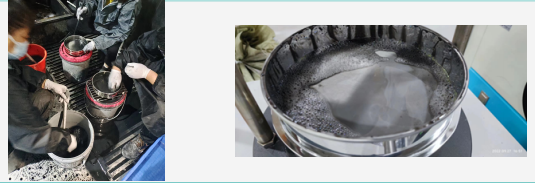

Background: manual screening and mixing method with wooden stick are adopted.. At least two people are required to operate at the same time, and 3-4 people are required when the quantity of incoming materials is large;
Problem points: poor operating environment, waste of manpower, low efficiency, introduction of manual methods,and poor consistency.
Creative Solutions
Advantages
1. Operation automation: realize the automation of powder screening process;
2. Manpower reduction:it can reduce the manpower to only one operator
3. Consistency improvement: it can reduce the differences in personnel skills and improve the consistency level;
4. Efficiency improvement: shorten testing time;
5. Convenient cleaning: all adopt quick-release and quick-change structure;
6. The screening part is of non-metallic structure: it can avoid the interference of metallic particles
Equipment parameters
|
Items |
Parameter |
|
Mixing drum |
10kg |
|
Level sensor tolerance |
±3mm |
|
Amplitude or speed |
0.2-3mm |
|
Screenable diameter |
1200 mesh, 0.014mm
(the screen can be replaced as required) |
|
Screening mode |
Wet sieve |
Installation requirements
|
Items |
Parameter |
|
Equipment voltage |
380V |
|
Number of power interfaces |
1 |
|
Water source interface/number of interfaces |
Deionized water/2 |
|
Size |
1000*1000*1500mm |
