Item NO.:
TMAX-CFOrder(MOQ):
1Payment:
L/C,T/T,Western Union, PaypalLead Time：
2 daysCertificate:
CE ROHS Certificate
Quantity Discount is Available: ＞5pcs, 15% OFF
Quantity Discount is Available: ＞10pcs, 25% OFF and Free Shipping
For more product information and ordering detail, please contact: David@tmaxcn.com

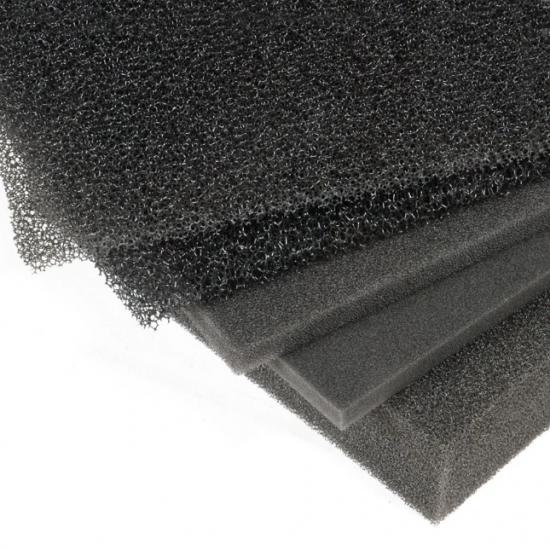

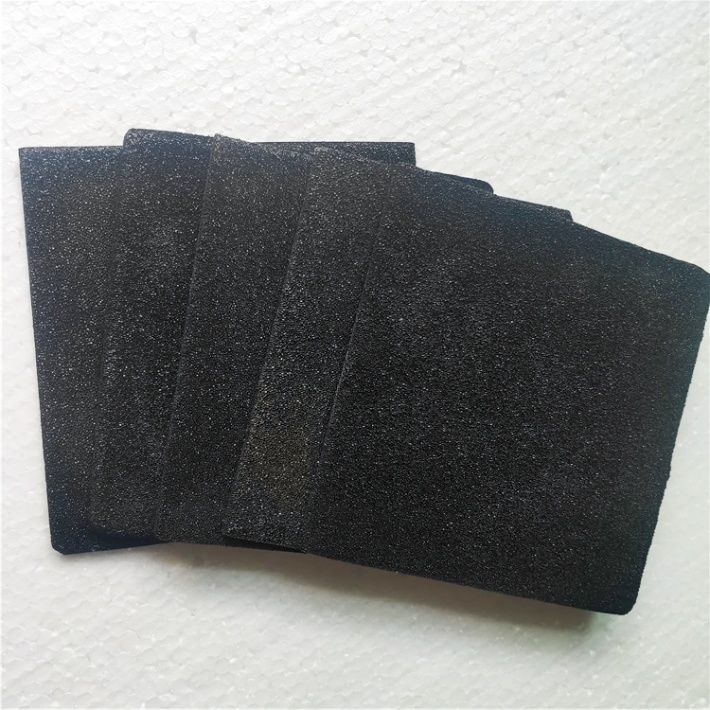

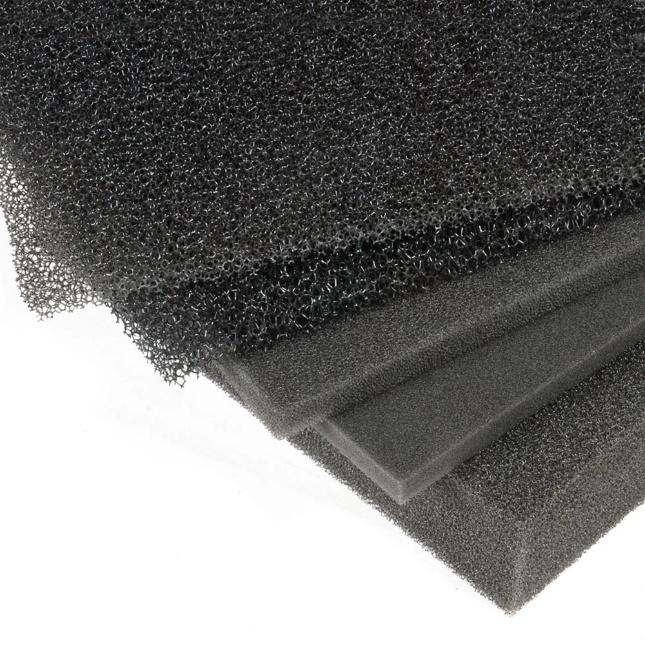

In addition to the conventional properties of carbon materials, carbon fiber foam also has the characteristics of low density, high strength, thermal shock resistance, easy processing, and good physical and chemical properties such as electrical conductivity, thermal conductivity, and wave absorption.
1. Low density, high strength
2. It can be made into high or low thermal conductivity materials
3. It has good thermal shock resistance and can resist the shock of temperature sudden change of
1250 ℃
4. High temperature and corrosion resistance

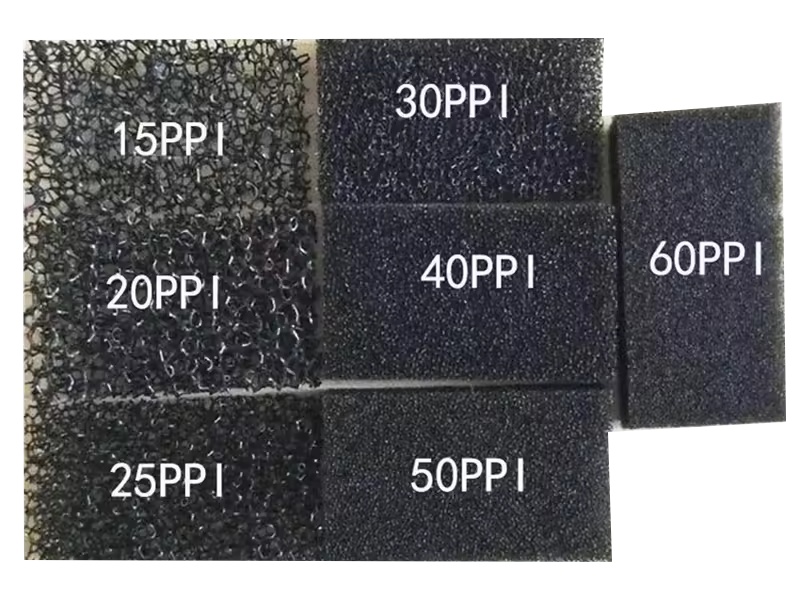

5. Pore size can be foamed according to customer's requirements
Technical indicators
|
Density |
0.2 ~ 1.0g/cm3 |
|
Porosity |
30 ~ 80% |
|
Aperture |
0.01-6mm |
|
Compressive strength |
8-12mpa |
|
Compression modulus |
300-620mpa |
|
Tensile strength |
2-5mpa |
|
Tensile modulus |
300 ~ 500MPa |
|
Thermal expansion coefficient |
5.0ppm / ℃ |
|
Thermal conductivity |
25 ~ 80W / m.k |
|
Resistivity |
1.0 × 10-2 ~ 10-5 Ω· M |
|
Maximum operating temperature |
600 ℃ (in air), 3000 ℃ (in inert gas) |
Dimensions
|
0.5mm*100mm*100mm |
0.6mm*100mm*100mm |
0.7mm*100mm*100mm |
|
0.8mm*100mm*100mm |
0.9mm*100mm*100mm |
1.0mm*100mm*100mm |
|
1.2mm*100mm*100mm |
1.5mm*100mm*100mm |
2.0mm*100mm*100mm |
|
2.5mm*100mm*100mm |
3.0mm*100mm*100mm |
The size can be customized |
To customize various metal foams, please click the picture below for details：
