Large Automatic Heat Rolling Press Machine for Cylindrical Cell Production and Making

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    Tmax-rolling1
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Large Automatic Heat Rolling Press Machine for Cylindrical Cell Production and Making



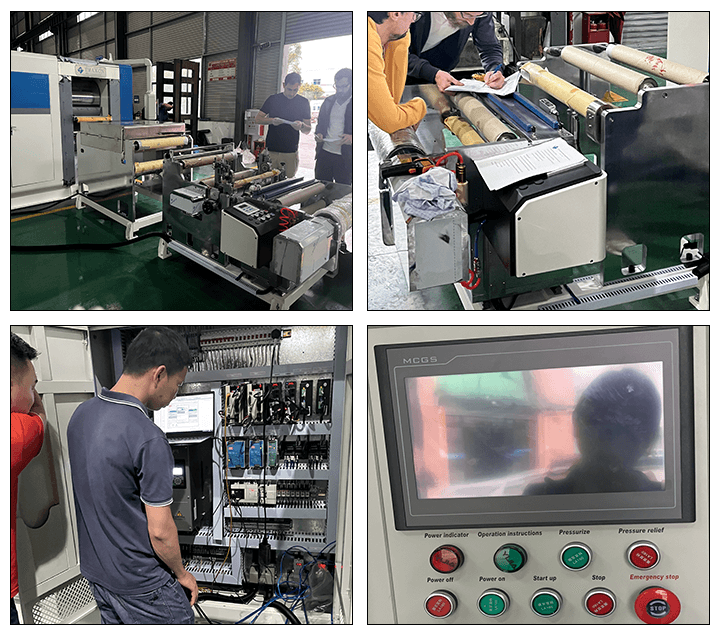

Characteristics of equipment

TMAX rolling1 adapt to continuous rolling process for all kinds of lithium battery anode and cathode.

1.   Rolling speed: 2~12r/pm, CVT adjustable.

2.   Roller material: 9 Cr2Mo, Roller surface hardness: HRC 65~68

3.   Gap adjustment method: Servo motor drive the middle wedge to adjust, mechanical self-locking.

4.   Roller gap adjustment range: 0~2mm

5.   Roller gap adjustment accuracy:1μm

6.   Thickness uniformity of pole sheet after rolling: ≤±2μm. Maximum rolling form:3000 KN


 Specifications of roller:


Item Type

RM500

RM600

RM800

Roller size

500*500mm

600*600mm

800*800mm

Pole sheet width

200~500mm

200~550mm

300~750mm

Output speed

2~11rpm

2~10rpm

3~12rpm

Roll straightness speed

4~17m/min

4~19m/min

6~30m/min

Roller surface roughness

Ra≤0.2

Ra≤0.2

Ra≤0.2

Roll cylindrical degree

≤2.0μm

≤2.0μm

≤2.0μm

Roll thickness accuracy

±2.0μm

±2.0μm

±2.0μm

Roll pressure range

100~300t

100~300t

100~300t

Roll gap adjustment range

0~2.0mm

0~2.0mm

0~2.0mm

Roll gap adjustment accuracy

1μm

1μm

1μm

Tension adjustment range

2.2~20kg

2.2~20kg

2.2~20kg

Orderly winding error

±0.5mm

±0.5mm

±0.5mm

Retractable roll diameter

Max:Ø550mm

Max:Ø550mm

Max:Ø550mm

Air pressure

0.5MPA above

0.5MPA above

0.5MPA above

Power

15KW

18KW

35KW
