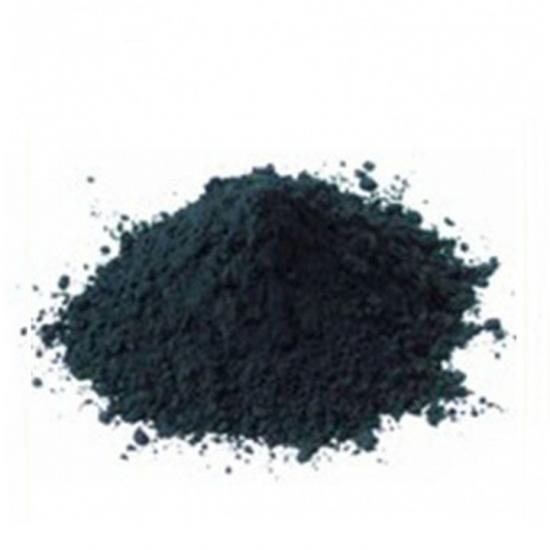

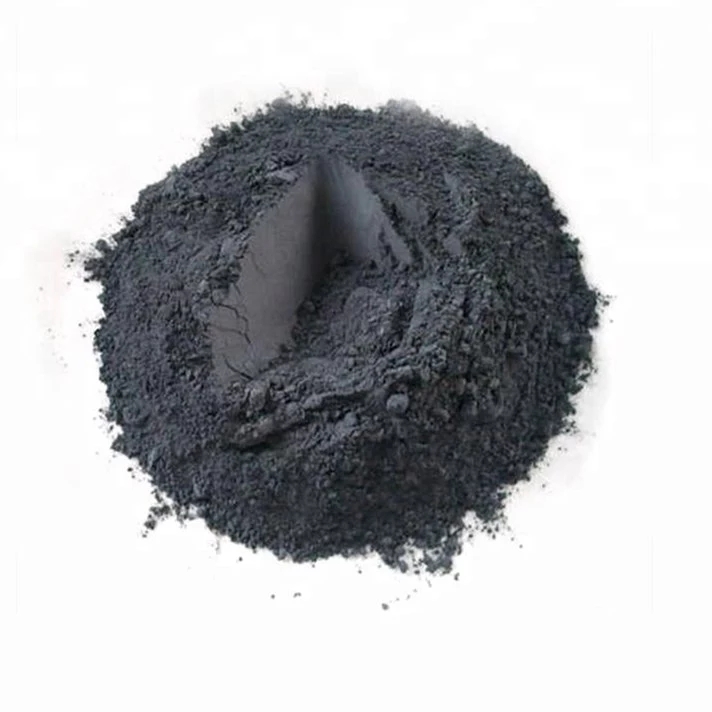

LiMn2O4 (Manganese) Powder for Li-ion Battery Cathode

Application Notes:

• Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry
• Please keep the powder in vacuum box to avoid moisture,

• Please bake the powder in a vacuum oven at 120 - 150 °C before making slurry and coating to ensure max. capacity

Item		Unit	Content
Chemical Composition	Ni	%	≤0.01
	Fe	%	≤0.01
	Na	%	≤0.5
	Cu	%	≤0.002
	Metal impurity	ppb	≤25

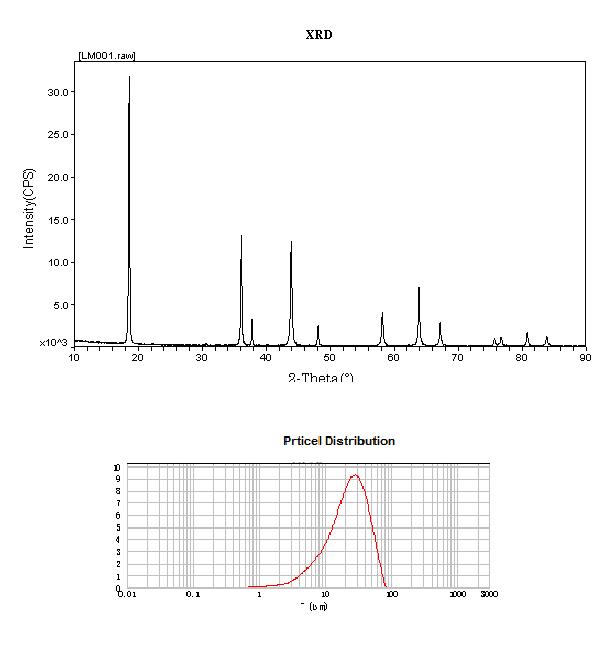

Particle distribution	D03	μm	>5
	D50	μm	23-27
	D97	μm	<27
	Dmax	μm	≤90
Moisture		%	≤0.2
Specific Area		m2/g	0.4~1.0
Tap Density		g/cm3	4-5 @20C
Specific Capacity		mAh/g	~105mAh/g
Melting Point		C	1000
Water Solubility			Insoluble
