Module Laser Welding Equipment for Square Shell Battery

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-BJXC-LW01

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

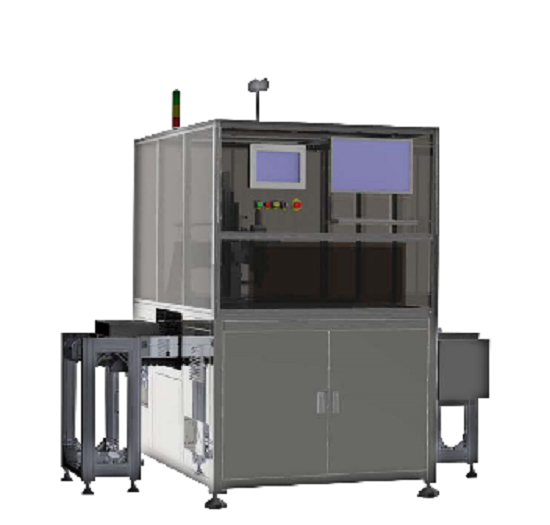

Module Laser Welding Equipment for Square Shell Battery




Products Description

This equipment is mainly used for the welding of soft package, square shell, cylindrical battery module and nickel piece. The module is positioned and pressed in the welding fixture to ensure the welding surface to fit together, the precise welding is realized by vision guiding and locating the welding seam. Can be customized according to the use of the design module loading and unloading mode, can be used as a single machine, can also be used with the automated production line supporting.



Performance Characteristics

1. Continuous optical fiber laser welding, high efficiency, good welding quality;
2. Special welding fixture ensures welding accuracy and quality;
3. Vision-guided positioning of welding seam to achieve accurate welding;
4. Real-time tracking and monitoring of welding path.



Technical Parameter

Model Number

TMAX-BJXC-LW01

Beat

60PPM

Voltage Source

220V 50HZ

Batteries

18650/21700/22650 ect.

Power

2.5KW

Pressure

0.5-0.7MPA

Nickel Sheet

±0.1mm

Precision

0.02mm(Repeat)

Speed

200mm/s

Dimensions

2600*1100*2000(mm)
