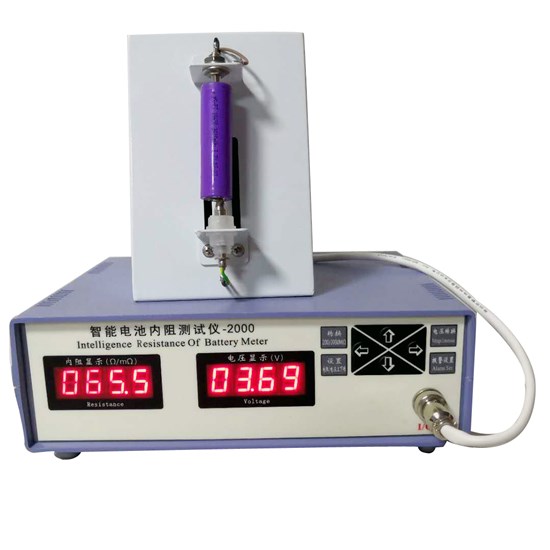

Rapid and Accurate Internal Resistance Tester for Cylindrical Cell

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-R-204
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail


Rapid and Accurate Internal Resistance Tester for Cylindrical Cell



SPECIFICATION

1. Usually the smaller resistance for the battery or battery core, the higher quality for the battery.

So testing battery resistance is a rapid and accurate method to check battery performance.

2. TMAX-R203 Battery internal resistance tester adopts four line acquisition method, can test the resistance orimpedance with or without power supply.

3. This battery internal resistance tester is widely used for battery manufacture and battery sellers to check the battery performance.


Machine model

Battery internal resistance tester

Source voltage

AC110V-240V, 50/60HZ

Power

10-30W

Testing speed

100ms

Advantages

Can connect with computer

Suitable varies kinds battery and battery core

Buzzer alarm

Voltage test V1

Voltage range : 0-4.999V

Minimum resolution : 0.001V

Accuracy : ±0.002V

Voltage test V2

Voltage range : 0-29.99V

Minimum resolution : 0.01V

Accuracy : ±0.01V

Resistance test R1

Resistance range : 0.1—200 mΩ

Minimum resolution : 0.1mΩ

Accuracy : ±0.5 mΩ

Resistance test R2

Resistance range :1—2000 mΩ

Minimum resolution : 1mΩ

Accuracy : ±2 mΩ

Suitable batteries

Lithium battery, lithium pouch cell(Lithium polymer battery),

Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.

Dimension

250*190*90mm

Weight

2kg

Warranty

One Year limited warranty with lifetime support
