Roll-to-Roll Automatic Slitting Machine for Lithium-Ion Battery Electrode Preparation

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-HC-520A
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

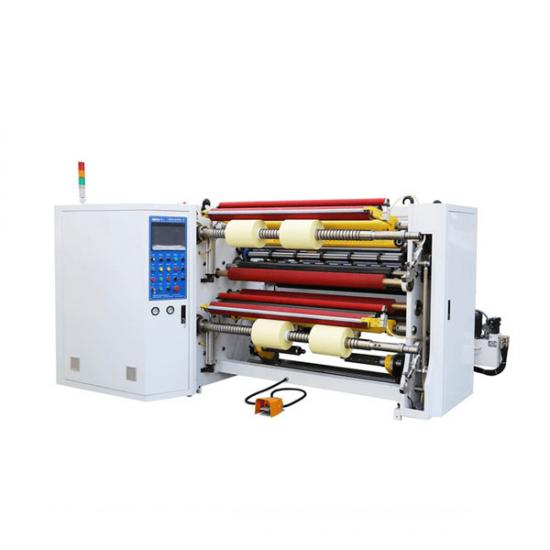

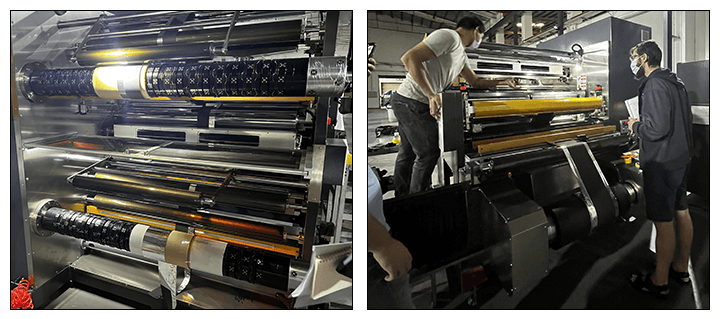

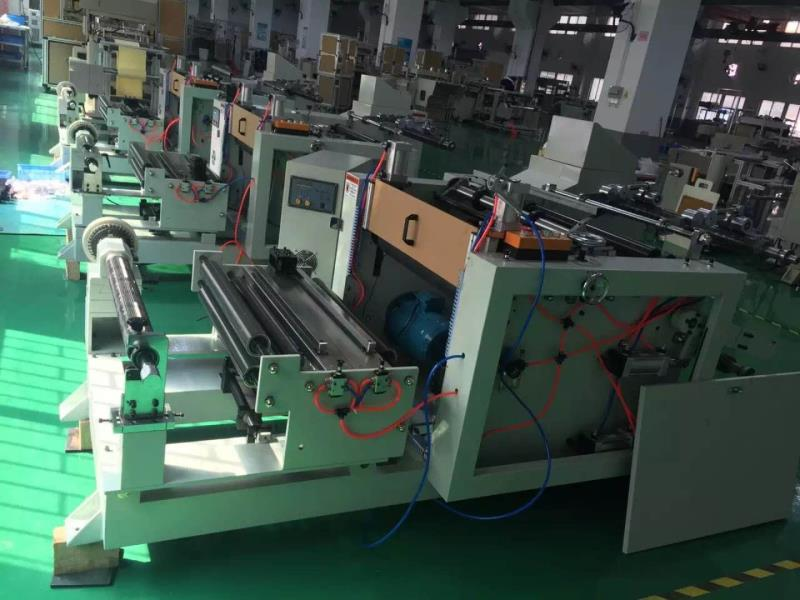

Roll-to-Roll Automatic Slitting Machine for Lithium-Ion Battery Electrode Preparation

1. Applicable Industries and Products

This machine is used for the slitting and processing of lithium-ion battery electrode.

2. Equipment Functions

Applicable for slitting materials such as copper foil, aluminum foil, OPP, PE, PP, PVC, release paper, and release film.

Workflow:
Roll-fed material → Automatic unwinding → Web guiding → Slitting → Rewinding

3. Equipment Features

This machine is a high-precision, high-sensitivity slitting equipment. Both the unwinding and rewinding units are equipped with high-precision air shafts. Tension can be freely adjusted via a magnetic powder clutch, and web guiding is managed by an automatic ultrasonic system with dual-motor control.
The machine is equipped with the following features:
- Automatic detection
- Automatic web guiding
- Automatic length measurement
- Material anti-scratch protection
- Automatic stop at preset lengths
- Fault alarm system

Key Benefits:
Fast slitting speed, high precision, easy operation.

Equipped with: 5 air knives

4. Technical Specifications

Item	Specification
Machine Model	HC-520A
Slitting Speed	35 m/min
Max. Web Width	520 mm
Min. Slitting Width	30 mm
Max. Unwind Diameter	600 mm
Max. Rewind Diameter	450 mm
Unwind Core Diameter	76 mm (customizable)
Rewind Core Diameter	76 mm (customizable)
Slitting Accuracy	±0.2 mm
Burr Accuracy	≤30 μm
Machine Weight	Approx. 1300 kg
Power Supply	380V / 3 Phase / 50Hz
Motor Power	3 kW + 4 kW
Compressed Air	0.5–0.7 MPa / 120 L/min (user supplied), φ10 air pipe
Machine Dimensions (L×W×H)	Approx. 1600 × 1400 × 1200 mm

5. Main Components

No.	Component	Brand	Remarks
1	PLC	Siemens (Germany)
2	Touch Screen	Weintek (Taiwan)
3	Cylinder	SMC
4	Inverter	Inovance	2 units
5	Main Motor	Delta	2 units
6	Ultrasonic Web Guide	Chongqing Bat
7	Static Eliminator Bar	Kodick
