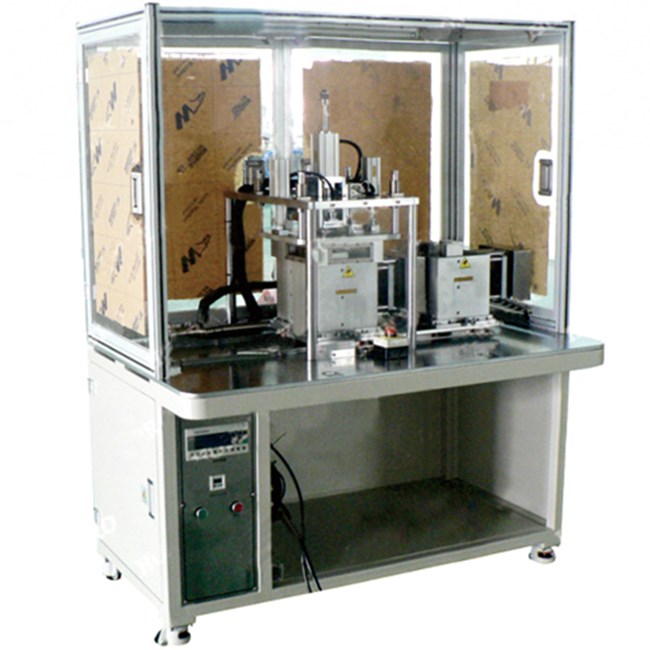

Semi-Auto Vacuum Steel Ball Sealer for Prismatic EV-battery

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-A-027
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Semi-Auto Vacuum Steel Ball Sealer for Prismatic EV-battery


Functions
 It is used to vacuum steel ball sealer for big size prismatic EV-battery.

Features
 Double chambers, recycle, battery deeding & steel ball sealer are operation at the same time, chamber recycle precision ±0.1mm.
 Adopt air cylinder straight line cycle, hydraulic buffer limit, move stability.
 Steel ball storage in stainless steel vessels, avoid magnetic
 Piston type send steel ball, avoid empty sealer or repeat steel ball sealer.
 Use the air cylinder to seal steel ball, easy to adjust air pressure.


Technical Parameters(for reference)

ITEM

MAIN PARAMETERS

Dimension

L x W x H 1000x500x1800mm

Weight

About 0.15T

Power supply

AC220V/50HZ, 0.2KW

Air source

0.6Mpa, 30L/min

Vacuum source

 -0.09Mpa, 10L/S

Applicable battery range

L 80-150, W 15-40, H 100-210, Filling hole dia 1.3-1.8mm

Capacity

80-200PCS/H

Action

99%
