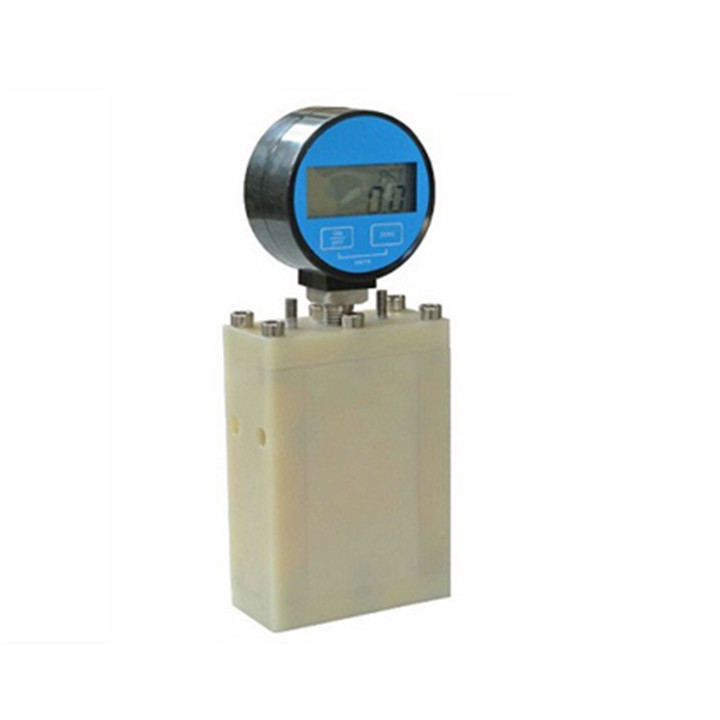

EQ-SPCW is  splittable pouch cells with double quartz window for X-Ray or Raman in-situ analysis . The split pouch cell is  made of Nylon or Peek,  Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrode easily, quickly and cost effectively.

Specifications
Design Fearture	1,30 mm diameter quartz window installed on two sides of pouch cell for transparency measurement 2,Pouch cell is sealed by PTFE O-ring without liquid and gas leaking. 3,One pressure gauge installed on top to monitor pressure.  You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell 4,Pouch cell is Easy assembling by only four cap mounting screws 5,It is Easy to separate after test for microstructure analysis 6,Space saving, compact design allows you put it into the glove box
Material (Please select at options bar)	1,Nylon or PEEK (Poly Ether Ether Ketone) selectable from product options bar 2,Body: Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC  and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings 3,Body: PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings
Electrode Sheet dimension	1,Standard size:   Cathode Die: 57mm (L) x 44mm (W). With 10mm (L) x 10mm (W) protrude current collector. Anode Die: 58mm (L) x 45mm (W). With 10mm (L)  protrude current collector. 2, Customized size pouch cell is available upon request
