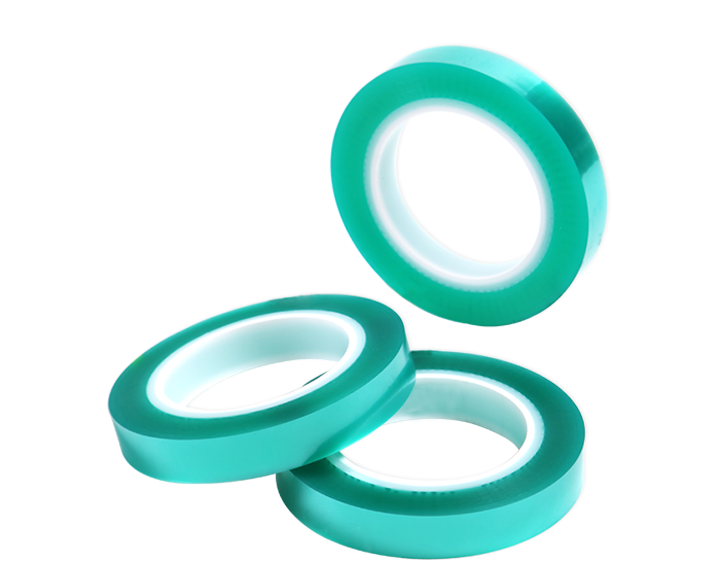

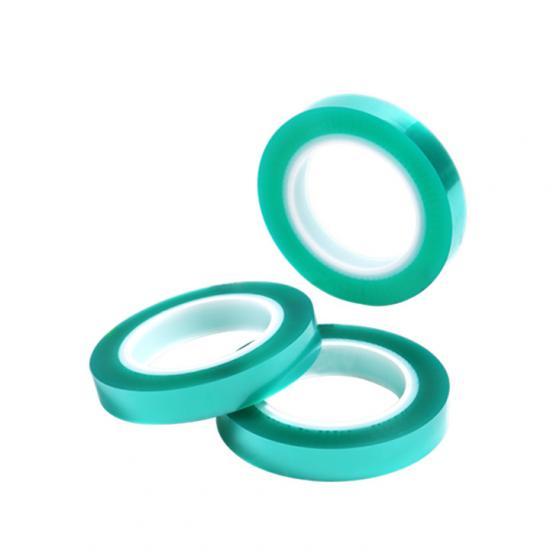

Strapping Tape for Lithium Pouch and Cylinder Battery

SPECIFICATIONS

The Adhesive Tape for the Packing of Lithium Battery is made of PET film backing and single side coated with acrylic adhesive. It’s provided with high performance in electrical insulation and heat-resistance, excellent adhesion and can be easily peeled off without residue. The material is environmental friendly and ROHS complied.

Used on parts of lithium battery and for adhesion, packing, wrapping and holding purposes on battery assembling process.



Item	TOB-0030PAP	TOB-0035PAP	TOB-0050PAP	TMAX-0055PAP
Backing	PET	PET	PET	PET
Adhesive	Acrylic	Acrylic	Acrylic	Acrylic
Total Thickness(mm)	0.030	0.035	0.050	0.055
Color	Clear/Black	Clear/Black	Dark Green/Blue/Yellow/Amber	Dark Green/Blue/ Yellow/Amber
Peel Adhesion （N/25mm)	1.5-2.5	2.5-3.5	6-8	6-8
Tensile strength （N/25mm)	50	80	85	95
Breakdown Voltage（KV）	3.5	3.5	5	5
Unwind Force	Light	Light	Medium	Light
Standard Width(mm)	Customized
Standard Length(Meter)	100/200
