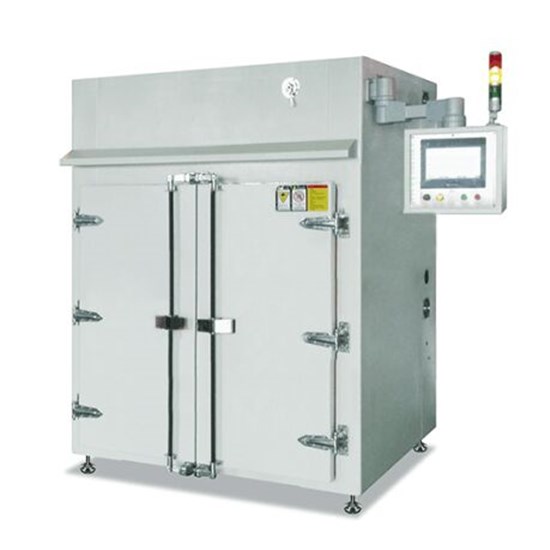

Touch Screen Control Automatic Vacuum Drying Oven for Supercapacitors Drying

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-KX6N
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Touch Screen Control Automatic Vacuum Drying Oven for Supercapacitors Drying



Specifications


Temperature range

Ambient temperature:

 + 0 ~ + 180 ℃

Temperature resolution

 0.1 ℃



Temperature fluctuation

≤± 2 ℃

Temperature uniformity

≤± 2 ℃

Heating time

Ambient temperature ~ 140 ℃, heating time ≤ 30min, temperature overshoot < 5 ℃, over temperature alarm device.

Vacuum degree

Vacuum degree of vacuum tank liner: no load ≤ 0.007 mbar, leakage rate of box ≤ 1X10-6 mbar * 1 / s

(according to vacuum capacity of vacuum pump)

Capacity

The maximum baking capacity of one set is 180 capacitors (calculated as 60.138).



Working voltage

Three phase 380V / 50Hz



Total power

8kw



Weight

600kg



Size of vacuum box

580 (L) × 420 (W) × 380mm (H)



Overall dimensions

width 1600 * depth 1300 * height 2000mm



Vacuum box structure

1. The vacuum box is processed by CNC machine tool and welded. The material is imported SUS304, which is solid and beautiful.



2. Use precision rubber (working temperature is - 70 ~ + 230 ℃) and precision ball valve to make it leak free
