1. Product model: TMAX-TMH800

2. Product Introduction: This product is a 800mm long cast coating machine, including a vacuum suction cup and an oil-free vacuum pump, and a scraper can produce long thick films. With a unique automatic propulsion device, it can produce smooth coatings on any material within a width of 150mm and a length of 800. It is an ideal tool for low-cost research and development of 18650 battery electrode materials.

3. Standard configuration: with film applicator width 100mm

4.Main features:

*Strong wind circulation drying heating, digital display temperature control, maximum working temperature 130℃;

*Digital display timer, drying time can be set freely;

*The coating speed is adjustable within the range of 0～120mm/sec;

*Vacuum aluminum tray, which can quickly place or remove the substrate;

*The stroke can be adjusted by the stroke switch between 0～800mm;

*With a scraper for adjusting the thickness of the coating film (precision 0.01mm);

*Small size, can save space;

*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

*Can provide infrared drying

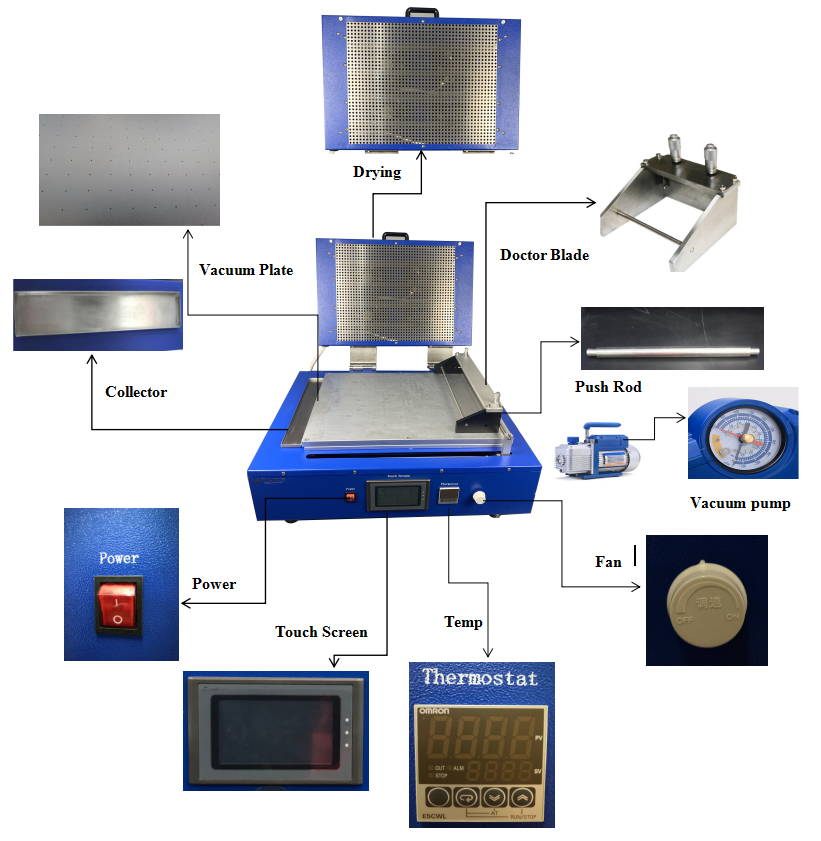

Appearance

6. Technical Parameter

*Film coating speed: 0～120mm/sec;

*The stroke can be adjusted by the stroke switch between 0～800mm.

*Vacuum plate: aluminum plate with vacuum;

*Vacuum board size: L900mm×W200mm×H32mm;

* Adjustable range of scraper: 0～3.5mm;

*Heating drying system: room temperature～130℃, digital display temperature controller, accuracy ±1℃

*Power supply: 220V/50Hz;

*Power: 1.8KW

*Weight: 70KG;

*Dimensions: L1000mm×W350mm×H320mm;

7、 Operating procedures

(1) Put the electrode piece on the vacuum plate, start the power supply, turn on the vacuum, and the pole piece is adsorbed on the vacuum plate;

(2) Put the film applicator on the electrode piece and put the coating paste into it;

(3) Open the coating, and the coating device will automatically push the film applicator to walk and paint automatically;

(4) Take out the film applicator and push rod, cover the heating cover, set the heating temperature and time, and then heat and dry;

(5) After drying, turn over the hot cap, take out the coated electrode, and reset the coating device;

8、 Maintenance methods and precautions

1. Before each work, wipe the coating head and body carefully with a soft cloth dipped with alcohol to keep it clean.

2. The coating head, differentiator and other high-precision parts should not be collided, handle with care, and adjust the differentiator symmetrically and evenly.

3. Regularly check the screws, nuts, pins and other fasteners of each part to prevent loosening and prevent product quality accidents.

9、 Quality assurance and after sales service

1. Lifelong maintenance, one year warranty.

2. After the expiration of the warranty period, the seller only charges the man hour and transportation expenses for the maintenance of the equipment, and the seller only charges the cost for the replacement and purchase of the equipment related accessories.
