18650 26650 32650 21700 Cylindrical Lithium Battery Pack Assembly Plant Equipments for Li ION Battery Pack

18650 26650 32650 21700 Cylindrical Battery Pack Assembly Machine

Automatic Cylindrical Battery PVC Heat Shrink Wrapping Machine

(Solve the problem of short circuit caused by metal contact of battery)

512 Channel 5V3A/6A Battery Tester (Test the capacity of each single cell)

Process

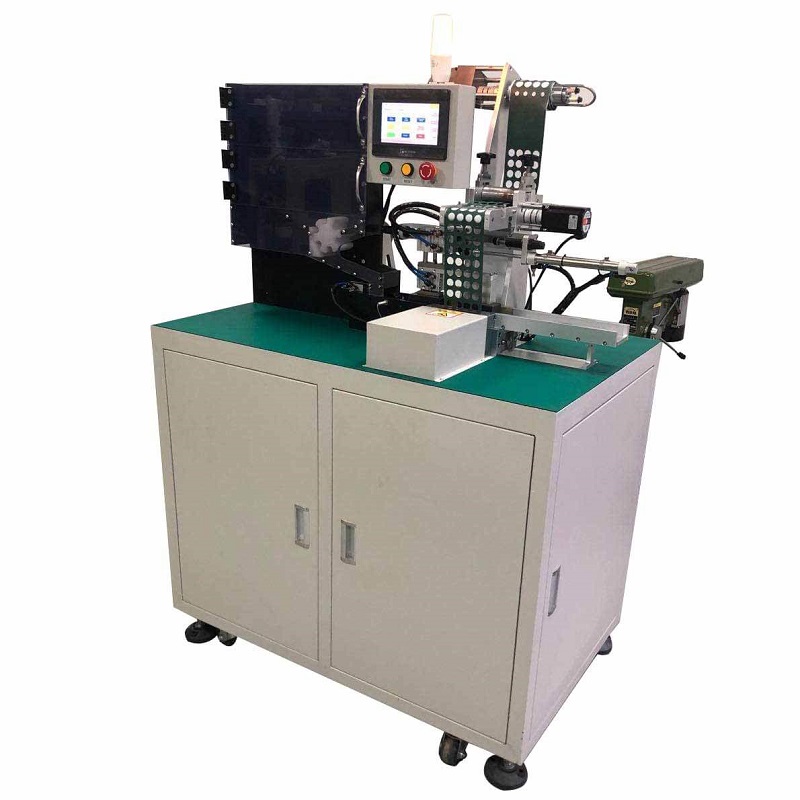

1. Battery Labling Insulation Paper Sticking/Pasting Machine (Effectively prevent short circuit of positive and negative poles  of power battery pack during vibration)

2. Batter Sorting Machine(Test the resistance and voltage of cylindrical battery)

(5/11 Channel Battery Sorter optional) Data record function is selctable

3.Spot Welding Machine

(Weld the battery and nickel strip together)

Manual Type:

A: AC Spot Welding Machine(Pneumatic AC Spot Welding Machine/AC Pedal Manual Spot Welding Machine)

B: DC Spot Welding Machine(5000A/8000A Welding Current DC Spot Welding Machine/transisotr 8000A/10000A welding power supply optional)

Automatic Spot Welding Machine:

(Welding Stroke: standard:400x500mm(can be customized)

A:Single Side Automatic Spot Welding Machine

B: Double Sides Spot Welding Machine

4. 1-24 series or 1-32 series BMS Tester

(BMS Testing)

5.Battery Comprehensive Tester

(Test the performance of finished battery)

6.Aging Machine

(Charging and Discharging Aging)

(30 V 10A Charging 20 A Discharging Aging Machine)

(70 V 5A Charging 10 A Discharging Aging Machine)

(100 V 10A Charging 20 A Discharging Aging Machine)

Finished Battery Pack:

Generally 18650 lithium battery pack includes:

18650 battery, battery protection board, connecting nickel sheet, insulating paper, wire, PVC outer package, connector, key switch, power indicator light and auxiliary material (EVA), plastic bracket make up pack.

Large capacity 18650 battery capacity is generally between 1200 mAh ~ 3600mAh, while the general battery capacity is only about 800mAh. If combined into 18650 battery, 18650 battery pack can easily break through 5000mAh, with long life, high safety performance, 18650 lithium battery, non-toxic and pollution-free. The cycle number of the lithium battery pack processing equipment is more than 500 times, high temperature performance, 65 degree lower limit discharge efficiency is 100%.

In order to prevent battery short circuit, 18650 lithium battery positive and negative are separated. Therefore, the possibility of short circuit has been reduced to the extreme, and the protection board can be added to avoid overcharge and excessive discharge of the battery, which also extends the service life of the battery. The voltage of 18650 lithium battery produced by lithium battery spot welding machine is generally 3.6V, 3.8V and 4.2V, which is much higher than that of Ni Cd and Ni MH batteries.

The whole process of assembling power 18650 battery: lithium battery sorter - auxiliary materials on the cell - assembly fixtures (including nickel strips) - spot welding - tin welding (protection plate wire) - semi-finished product test - packaging (PVC) - finished product aging test - finished product completion.

1. Lithium Battery Highland Barley Paper Machine

Highland barley paper has good insulation, water resistance and wear resistance. When the lithium battery is working, the positive pole of the battery should be prevented from colliding with the positive pole, causing short circuit or preventing dust from entering the gap.

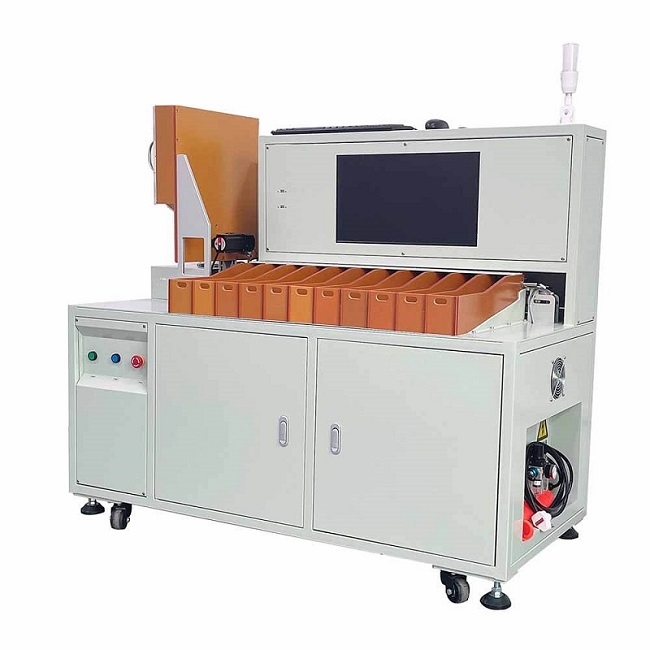

2. Lithium Battery Sorting Machine

Lithium battery sorter is a kind of cylindrical battery internal resistance and voltage test and sorting equipment, with high precision internal resistance and voltage automatic test system. Internal resistance and voltage values are set on the computer software and sent to the specified gear position.

The classification of internal resistance voltage and test results of lithium battery is generated by computer, the classification data is analyzed and a chart is generated, which is convenient for batch generation of visual statistics and display of quality. The test system has the function of database, which can query and count the historical test data.

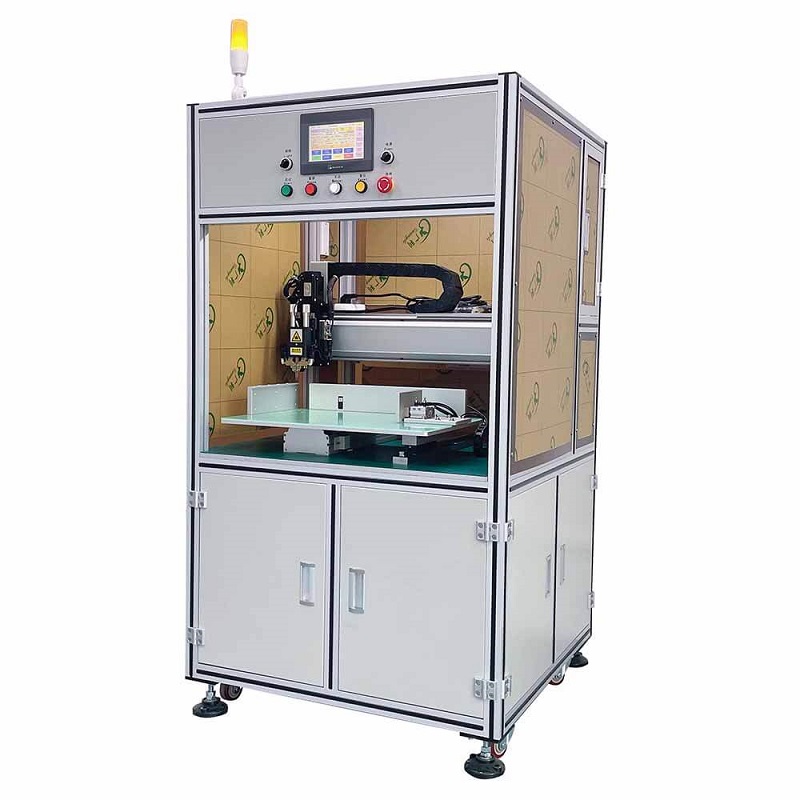

3. Lithium Battery Spot Welding Machine

The lithium battery is put into a special clamp, and the nickel sheet is used to connect the battery. As a conductive bridge, let each battery energy together.

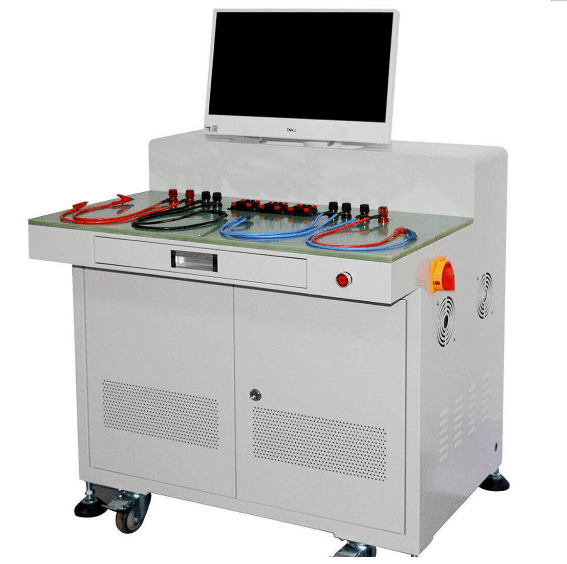

4. Battery Pack Comprehensive Tester

The integrated tester can measure the open circuit voltage, internal resistance, charging and discharging performance, battery capacity, especially the function of lithium battery, overcharge protection, over discharge protection, over current protection, short circuit protection, etc., and measure the corresponding values.

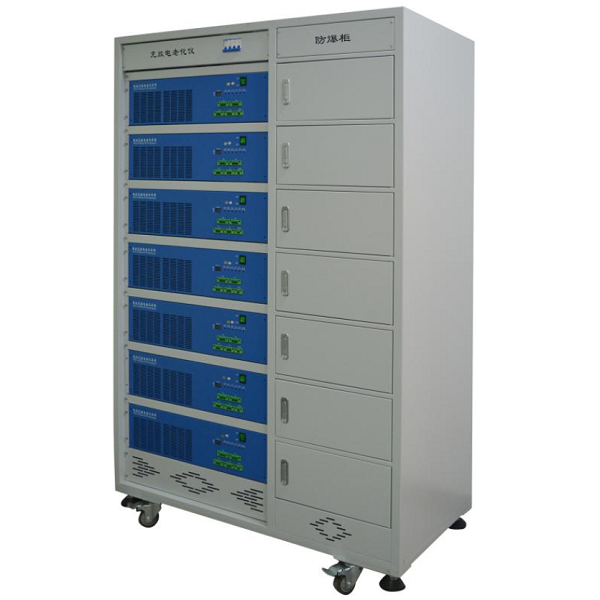

5. Battery Aging Cabinet

It is used to simulate how long the battery pack can be fully charged.
