Lithium Battery Pack Assembly Machine Line

/Automatic Double Sides Numerical Control Spot Welding Machine for Electric Vehicle Battery Pack

Automatic Double Sides Numerical Control Spot Welding Machine for Electric Vehicle Battery Pack

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-ZW-D300
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

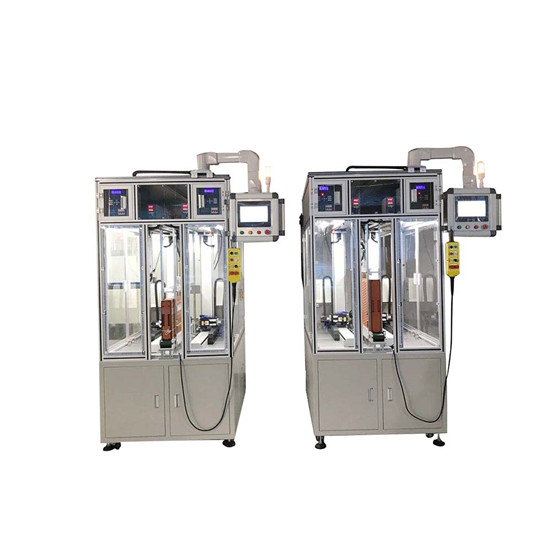

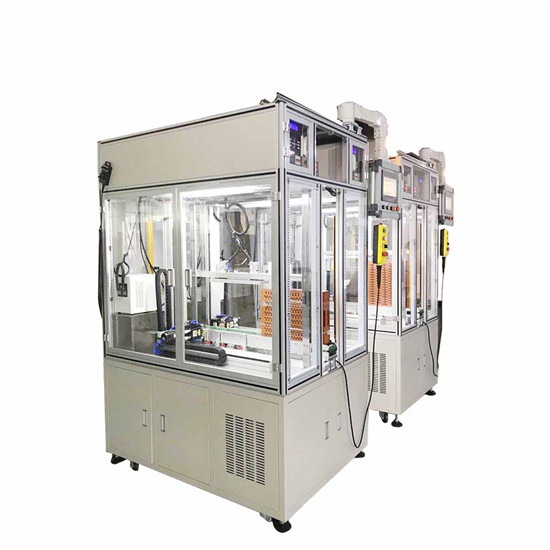

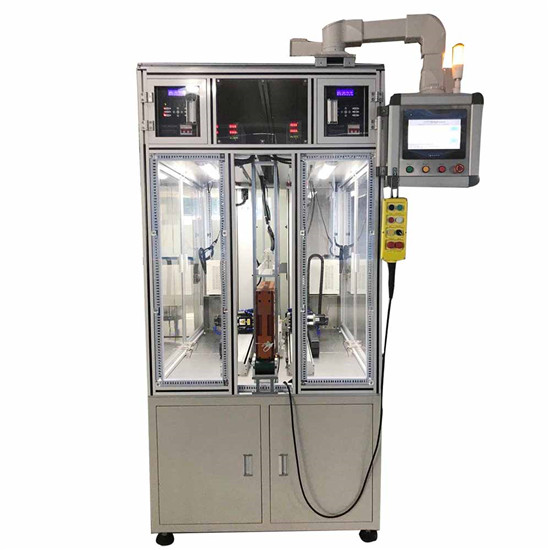

Automatic Double Sides Numerical Control Spot Welding Machine for Electric Vehicle Battery Pack


Equipment Introduction

It is suitable for electric vehicle battery pack, automobile battery module, street lamp battery, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, power tool battery pack, notebook battery pack, etc!



Features

1. Support breakpoint start, support automatic start and manual start mode conversion.


2. Simple programming, support any point programming and array programming, can realize jump spot

welding, single point, double point mode fast switching, spot welding path optimization, improve efficiency, local disk can store 99 groups of programming files, USB interface can import graphics.


3. The spot welding head takes the center point of two welding pins as the circle center, and the angle is continuously adjustable, which is suitable for spot welding of various special-shaped split connection pieces.


4. The system is divided into operator, administrator, super user and so on. It is convenient to use, manage and maintain butt welding machine.


5. The inverter DC welding power supply has the advantages of stable performance, fast welding speed, constant current working mode and elimination of unstable factors of welding current for a long time.

6. With welding current monitoring system, it can monitor welding current in real time.


7. Spot welding power supply has the function of false welding alarm, which can directly communicate with the motion controller. It can record the false welding position and warn the replacement of welding pin.


8. The welding efficiency is about 8 times that of manual welding, high stability, labor saving and time cost saving.


Specifications

Power supply

3 phase~380V±10%/50Hz±10%,

Rated power

50KW(max)

Z1、Z2 Travel Length

0-600mm(max)

Y Travel Length

0-1200mm(max)

X Travel Length

0-40mm

W Shaft angle

0

Welding speed

0.3S/point;1800-3600PCS/h

Maximum speed of motor transmission

1500mm/s

Maximum load cell (32650)

512pcs

Number of file groups that can be stored

99

operating system

Industrial computer + man machine picture

Transmission mode

Servo motor + TBI screw + linear guide rail

Spindle electrode

Letron servo motor

Spot welding head

Letron servo motor

Angle adjustment

Closed loop motor

Cooling mode

forced air cooling

Nickel sheet material

Nickel plated steel or pure nickel

Thickness of Welded Nickel Strip

0.1 mm-0.3 mm;

>0.2 mm slot with bump

External dimension (mm)

1800L*1100W*2000H

Repeat positioning accuracy

±0.02mm

Weight

600kg


Technical parameters of welding power supply

Model

ZW-5000A

Input power(V)

3Phase AC380V 士 10% 50/60Hz

Output current(A)

5000A

No load voltage(V)

10.8

Control mode

Constant current control

Cooling mode

Forced air cooling

Welding conditions

8

weight(Kg)

30.3

External dimension (L×W×H)mm

450×190×285

Transformer size(L×W×H)mm

3018265

Function

0.15-0.25mm Nickel sheet welding



Spot Welding Machine

Spot Welding Machine



Spot Welding Machine




Spot Welding Machine


Battery Pack Assembly Equipment
