18650 Battery Slitter Slitting Machine

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-MSK-300
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

18650 Battery Slitter Slitting Machine



MSK-300 is a semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.1. Advantages:a. Manual& simple operation,  b.Very cheaper priceC.Maintain is simple


Working Voltage

·         Machine Input: 22-24V DC with 5mm barrel connector

·         Power Input: 110-240V AC to 22V DC adaptor (120W) with CE / ETL approval, which can be used worldwide

Cutting Method

·         Two round blades rolling to cut

·         Blade Materials: Tungsten alloys

·         Blade Diameter:100mm

Max. Power Consumption

100W

Cutting Width

·         4 sets of slitting blades (two blades with slitting width of 58mm, and another two with slitting width of 56 mm)

·         Customization:25 - 250mm cutting widthis available at extra cost, please contact us for details.

Cutting Thickness

100 - 300 microns

Cutting Speed

0 - 4 meter / minute Adjustable

Product Dimensions

84.3cm(L) x 101cm(W) x 48cm(H)

Warranty

One year limited warranty with lifetime support

Net Weight

110kg (250 lbs)

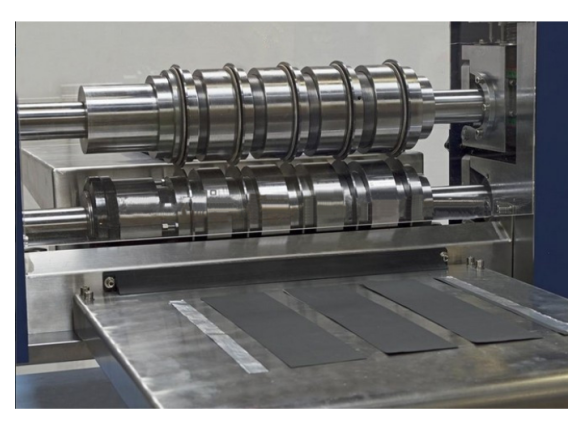

18650 Slitting Machine

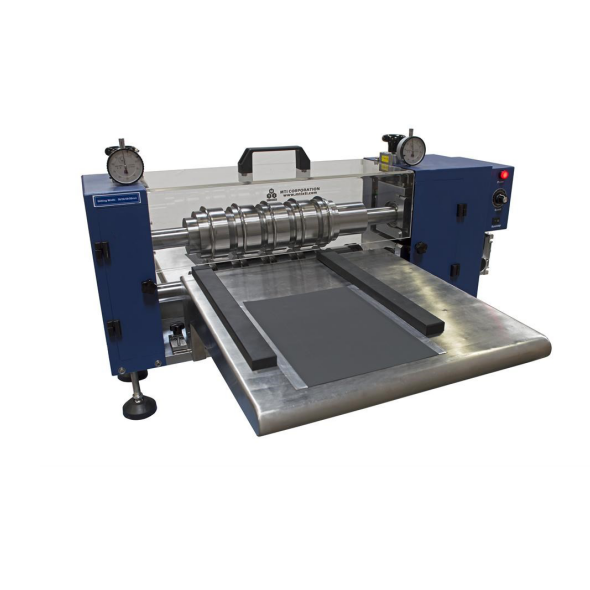

18650 Slitting Machine

Cylindrical Cell Pilot machine
