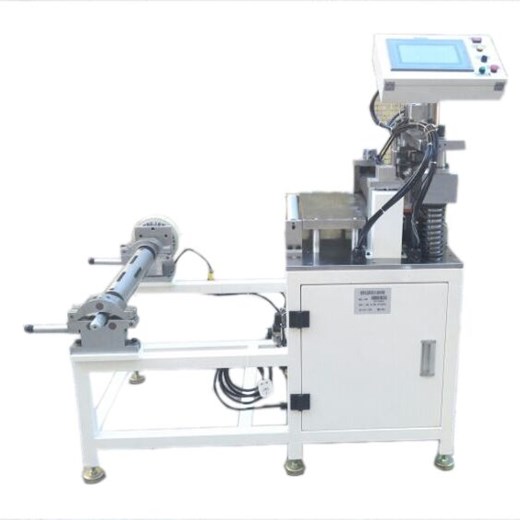

Battery Automatic Roll To Roll Electrode Die Cutting Machine for Lithium Battery

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-DYG-140B
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Battery Automatic Roll To Roll Electrode Die Cutting Machine for Lithium Battery



Features

 1 The Automatic shear cutting machine is mainly used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cutting big electrode is easier to slit or punch small pieces for battery making.

2 TMAX-DYG-140B model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.


 SPECIFICATION

Model

Lithium ion Battery Electrode Cutting Machine  TMAX-DYG-140B

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

500W

Warranty

Two Years limited warranty with lifetime support

Max electrode width

500mm

Cutting material

Battery continuous or clearance cathode and anode electrode

Cutting speed

0-12m/min, adjustable

Cutting accuracy

≤±0.3mm

Dimension(L*W*H)

1450*1250*1050mm

Advantage

1 Driven by stepper motor feed, fixed-length precision is high

2 PLC control, set length, easy to operate, intuitive

3 With digital set fixed-length cutting, clearance trace length shearing

4 Pneumatic drive shear, little noise
