18650 Cylinder Cell Single Point Pneumatic Welder

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-MSK-330A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

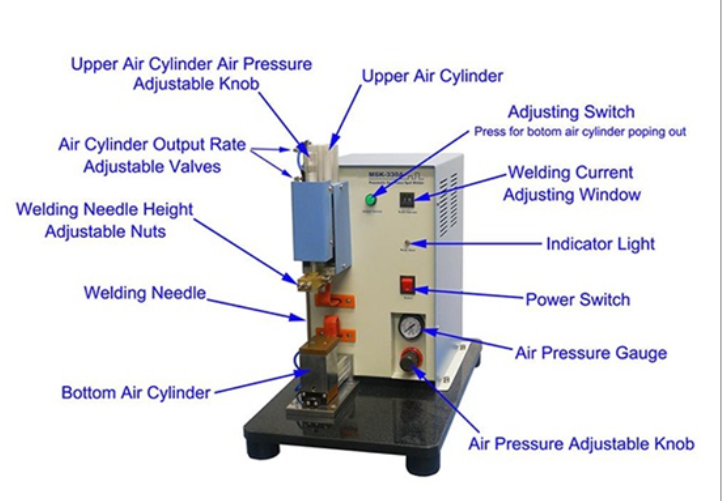

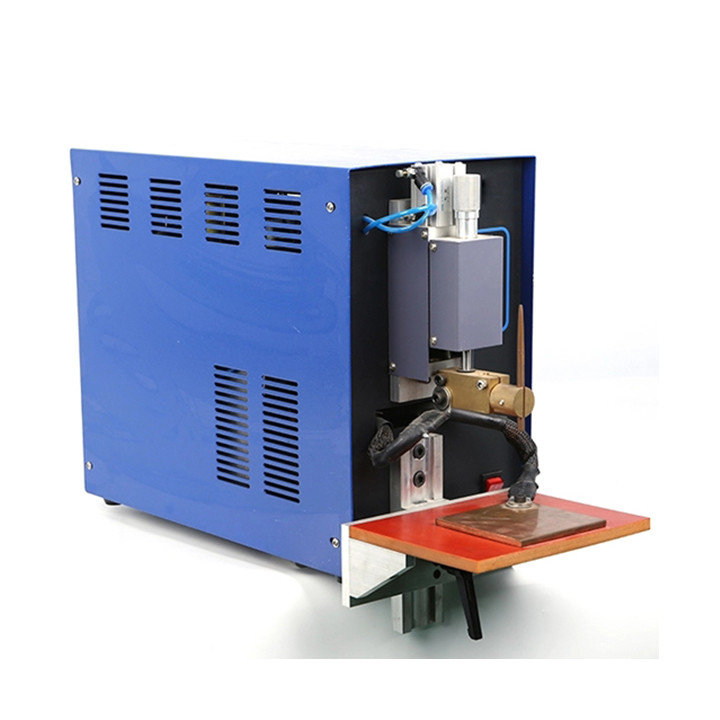

18650 Cylinder Cell Single Point Pneumatic Welder



It is the most popular capacitive discharge spot welder driven by compressed air. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.  If you have 18650 machine  ordering needs, please contact us.


Working Voltage

110V or 240V AC, 50/60Hz

Output Power

10KW

Input Air Pressure

0.1 - 0.8 MPa (Air Compressor is not included. Please click here to order)

Welding Current

0-99% Adjustable

Welding probes

·         Allow independent adjustment for pressure

·         Ensure consistent welding pressure

·         Fully eliminates the phenomenon of low voltage or condensation occurred to lithium batteries after welding

·         Homogeneous welding spot, small spark, and no black spots

Welding Switch

Built in optoelectronic welding switch, which can eliminate the need of changing switches for similar welding machines

Controller

·         Single chip control

·         Digital LCD control panel for setting all parameters

Tab Thickness Applicable

0.03 - 0.5mm tab (10 pcs 0.2mm Tab will be provided in the package for customer's practice)

Warranty

·         One year limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty

Product Dimensions

750(L)*650(W)*550(H)mm

Application Notes

·         Please click here to learn the basic knowledge of Capacitive Discharge Spot Welder

·         Avoid touching weld spots immediately after the weld has been performed as they will be hot

·         Always wear safety glasses when working with spot welders and weld heads

·         Be careful not to pinch fingers in moving weld head parts or between welding electrodes

·         Remove hand jewelries before welding

Net Weight

50 kg (110 lbs)
