Laboratory Small Electrolyte Filling Machine For Li-Ion Battery

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-50ml
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

Laboratory Small Electrolyte Filling Machine For Li-Ion Battery



TMAX-50ML is the new generation bottletop burette & dispenser from BRANDTech. It has a number of innovative features and upgrades for performing more accurate and convenient titrations. It is an excellent tool as an electrolyte dispenser; dispensing up to 50mL per batch for Lithium Ion Battery research.



Precision


The Titrette bottletop burette has an innovative new measuring system which matches the Class A accuracy of glass burettes and, if needed, can offer the precision of 3 decimal places below 20mL. This is an important feature for users who need to work within the Class A error limits of glass burettes according to DIN EN ISO 385 or within volumetric tolerance per ASTM E287.


User Serviceable


It can be quickly and easily disassembled in a matter of minutes – for cleaning, to replace the piston/cylinder, or to replace the batteries. Maintenance is easy and convenient, without the need to send it out for repair.


Protection


To protect light-sensitive media, the installed clear cylinder inspection windows can be easily replaced with the supplied clip-on amber-colored windows


Profile


All components move within the housing, reducing headroom requirements. The compact design and the light weight ensure good stability. The titrating tube can be adjusted horizontally and vertically


Operation


The large hand wheels provide smooth, precise control from rapid to dropwise titration.


Warranty

One Year limited warranty with lifetime support

Warning

Operating limits and exclusions - This instrument is designed for titrating liquids, with the following limits:

1.     Temperature of instrument and reagents must be between 15º and 40º C (59º and 104ºF)

2.     Vapor pressure up to 500mbar

3.     Viscosity up to 500 mm^2/s

4.     Altitude: Maximum 3000m above sea level

5.     Relative humidity: 20% to 90%

Automatic Digital Bottletop Dispenser

Automatic Digital Bottletop Dispenser

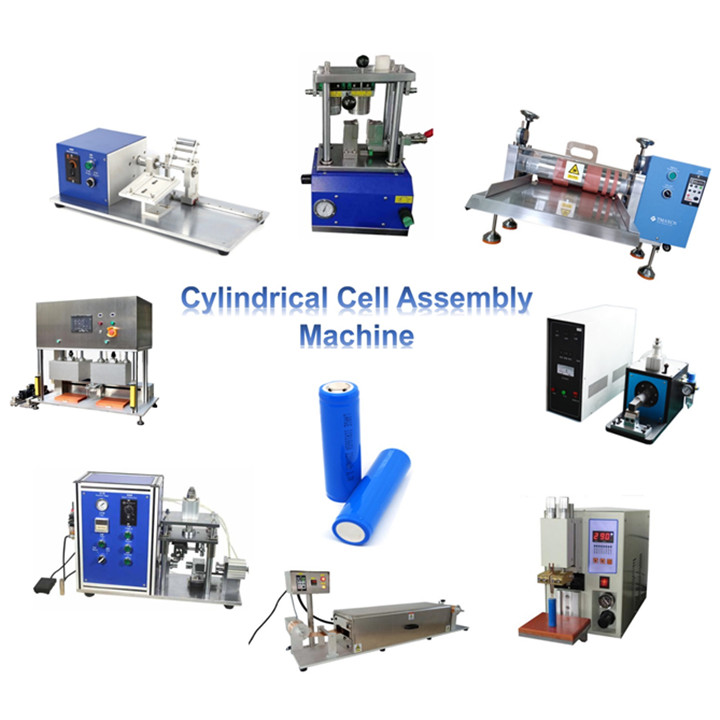

Cylindrical Cell assembly
