Features

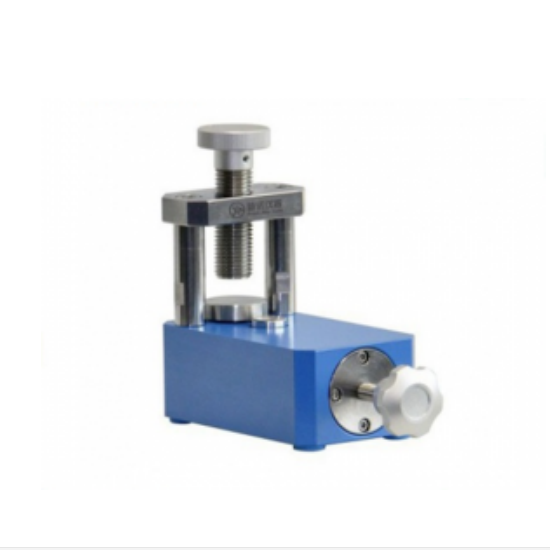

SYP-2T Infrared Mini Tablet Press: Specially used for KBr potassium bromide tablet production. It is an extremely easy-to-use, portable experimental hydraulic press, which can easily complete the pressing of infrared spectrometer Φ7mm (KBr) potassium bromide The sample preparation of the tablet has excellent test results. After thousands of comparison tests, the Φ7mm, Φ13mm, and larger KBr samples produced by this type of mini tablet press have consistent test results and can replace imported similar products.

Technical parameter

Model	SYP-2T
Pressure range	0-2T(0-30MPa)
Piston diameter	Chrome plated cylinder φ28mm
Piston stroke	5mm
Pressure gauge type	XNNETS pointer type
Pressurization mode	Manual pressurization
Pressure stability	≤1MPA/10Min
Workstation diameter	Φ455mm
Number of columns	2 pillars
Column space	54×55mm (W/H)
over dimension	100×220×220mm(L×W×H)
Weight	4.8kg
NOTE	Specially used for Φ7mm (KBr) potassium bromide sample preparation
Standard configuration	1 tablet press host, without mold (mold can be purchased, other configurations can be purchased)
