Features

The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.

It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.

It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.

It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.

Technical Parameter

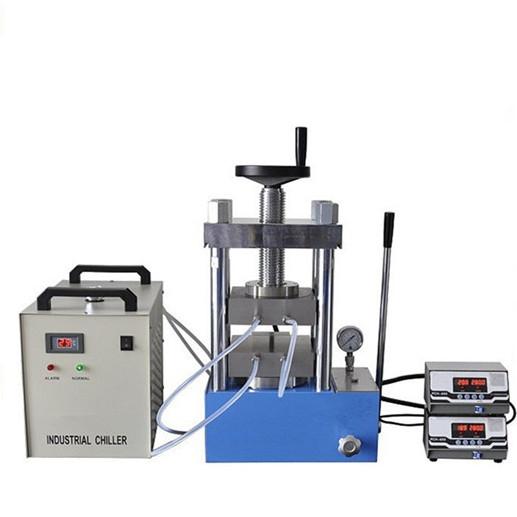

Product Name	Lab Hot Press Machine
Module	TMAX-RT-600D
Pressure range	0-30T(0-34MPa)
Piston diameter	φ150mm Chrome plating cylinder
Standard pressure gauge type	Indicator/pointer type, Ton and Mpa double-scale display
Optional pressure gauge	Digital display 0.00-40.00 MPa, accuracy 0.01 MPa
Pressurization method	manually pressurization
Temperature controller	Dual PLC programmed temperature controller
Temperature control range	RT-600.0℃
Heating temperature of die	RT-300.0℃ (can be customized to 500℃ high temperature die)
Temperature control accuracy	0.1℃
Insulation plate	Imported insulation plate
Cooling mode	Water cooling (water cooler is optional)
Overall structure	Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point
Heating die size	Double Heating Plate, 180 x 180mm or 200 x 200mm
Power supply power	220V/1000W
Main machine dimensions	405 x 260 x 525mm (excluding optional parts)
Overall dimensions	970 x 470 x 525mm
Machine weight	About 180kg
Note	Workspace can be increased according to customer's actual needs. Special hot press can be customized according to user needs
