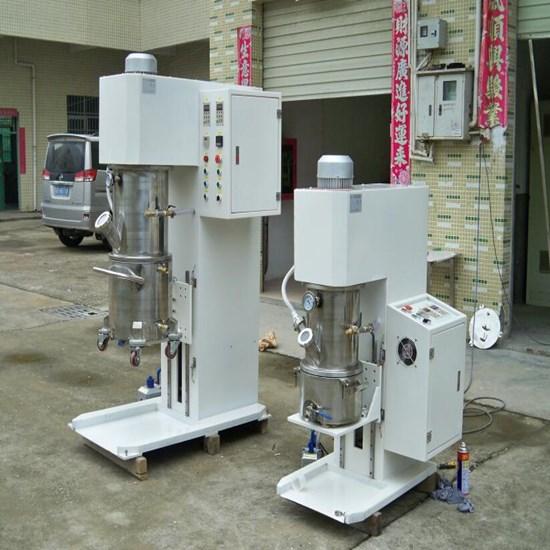

5 Liter Tri-Shaft Planetary Vacuum Mixer for Anode and Cathode Battery Material

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-PJB5L
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

5 Liter Tri-Shaft Planetary Vacuum Mixer for Anode and Cathode Battery Material



1. TMAX-PJB5L is a CE Certified Vacuum Planetary Mixer with 5 liters containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.

2. A temperature-controlled water circulator is included to make container working at the temperature range from 50ºC to 35ºC directly and water cold stainless steel tank can promise high efficiency in mixing.  TMAX-PJB5Lis excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.


SPECIFICATIONS:

Power Supply

1-    3 phase, AC 380V 50Hz

2-    Total power: 4kW

Revolution Speed

Mian shaft speed: 0 - 51 rpm
Stirring speed: 0 - 104 rpm, motor: 2.2kW
Dispersing speed: 0 - 9000 rpm, motor: 1.5kW

Vacuum

1-    The vacuum pump: 0.37kW built in

2-    The vacuum degree:  -0.098MPa

Lift Motor

Lifting Motor is built in ( 370W)

Bucket

1-    Dimensions: Dia.250mm * H.150mm

2-    Optional Capacity: 5 Liter

3-    Water cooling jacket

4-    Temperature monitors and over-temperature alarm

Beater

1-    Tolerance of beater and bottom: 2-4 mm

2-    Tolerance of beater and bucket wall: 2-5mm

3-    Tolerance of two beaters: 3-8mm

4-    Made of SS 304

Water Recirculating Chiller

One Digital Temperature Controlled Recirculating Water Chiller

Dimensions

1200x700x1800 mm

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Net Weight

420kg
