5L 10L 30L 50L Vacuum Planetary Mixer Mixing Machine with Vacuum Pump and Water Chiller for Lithium ion Battery Making

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-PVM-5L
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

5L 10L 30L 50L Vacuum Planetary Mixer Mixing Machine with Vacuum Pump and Water Chiller for Lithium ion Battery Making



1 This TMAX-PVM-5L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc

This lab planetary mixer Mixing motor adopts transmission frequency adjustment,

can choose different rotational speed and torque according to different process, different viscosity.

3 The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and

ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.


Model

 Planetary Vacuum Mixer  TMAX-PVM-5L

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

3500W

Warranty

One Year limited warranty with lifetime support

Rotation speed

0-1400 r/min, Through the inverter speed control

Revolution speed

0-70r/min

Effective volume

5L, 1-10 Liters Customized according request

Design volume

9L

Mixing barrel opening mode

Deceleration motor driven fill rises

Mixing barrel size

Φ260mm(Diameter)*180mm(Hight)

Mixing time set

0-99H can be set, auto stop when finish with vacuum

Weight

About 150kg

Dimension(H*L*W)

1400*1100*800mm, 51″*43″*27.5″

Advantage

5 liters 304 stainless steel container with high accuracy

Advanced soft sealing type to keep vacuum pressure

maintain on -98kpa up to 24 hours.

Double Step Rotary Vane Vacuum Pump, 254L/m, is

included for immediate operation

Programmable controller to set time, speed, rotation

direction.

With time and temperature setting function

Double blade design, make the material up and down

around, mixing  battery paste rapi

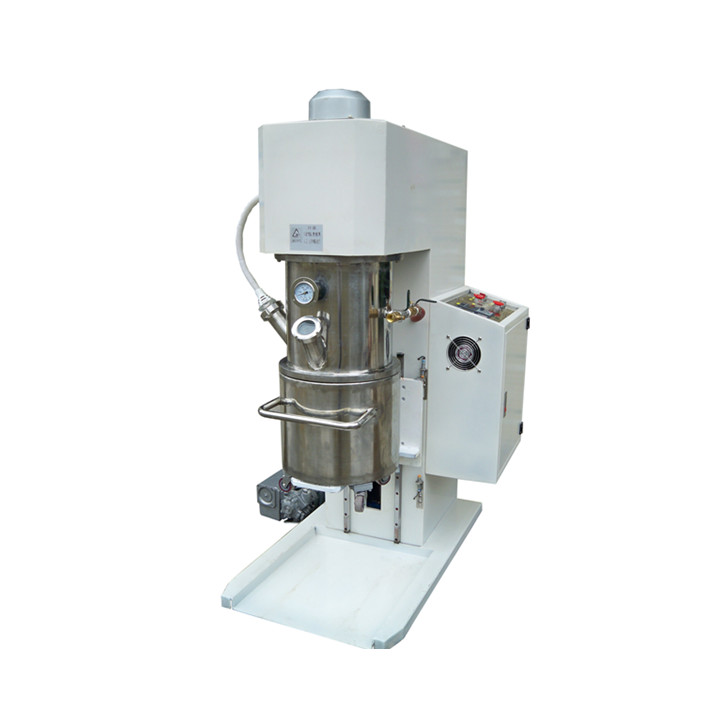

Planetary Vacuum Mixer
