5L Electric Vacuum Mixer With Single Axis Helical Blade

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    MSK-SFM-6E
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

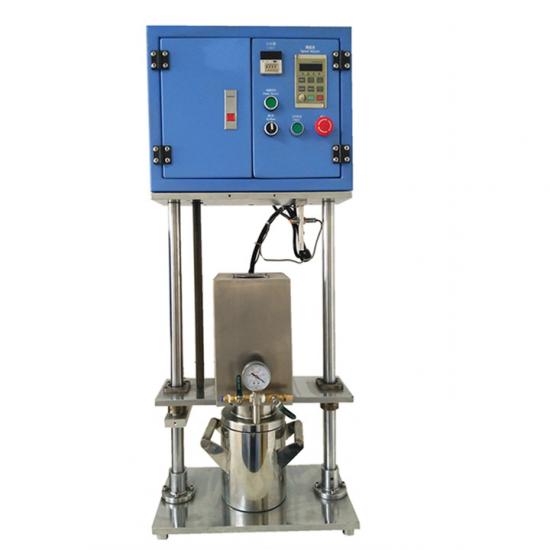

5L Electric Vacuum Mixer with Single Axis Helical Blade


1. MSK-SFM-6E is designed for making large batches (5 liters) of chemical compounds via blending and mixing in a single container under vacuum driven only by electricity. It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an efficient mixing process.

2. This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum. The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.


Features

1. 5-liter, 304 stainless steel container with dual layer water cooling jacket.

2. Advanced sealing mechanism helps maintain vacuum pressure up to 24 hours.

3. Container is opened and closed by an electric motor; the need for an additional

pneumatically driven device is eliminated from this operation.

4.Programmable controller for adjusting the time, speed, and rotational

direction settings.

Input Power Requirements

208-240VAC single Phase, 50/60 Hz

Motor Output

750 W ( 1 Hp)

Rotor Rod Speed

0 -1400 RPM variable

Mixing Blade Speed

10 - 110 RPM adjustable

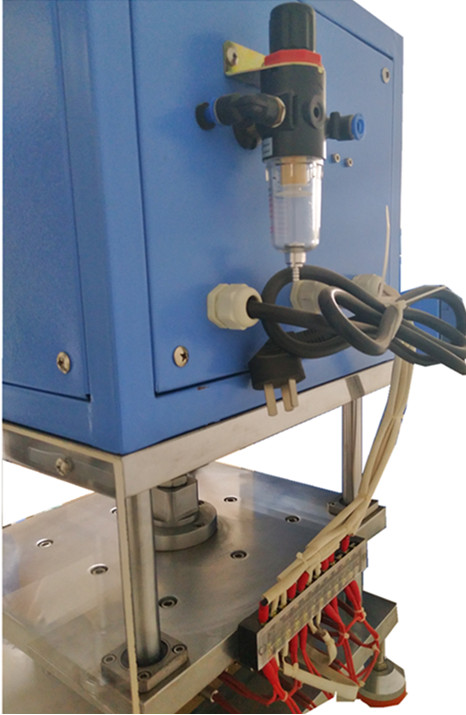

Lifting Mechanism

Air Compressor

Container & Blades

Three different mixing blades are included for immediate use:
1. Helical Mixing Blade (120mm H x160 mm Dia.)
2. Propeller Mixing Blade
3. Turbine Mixing Blade

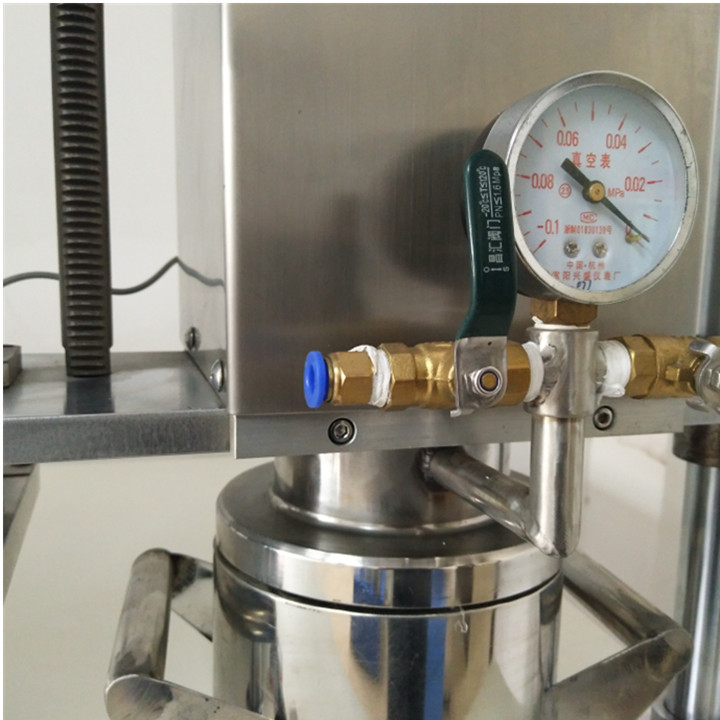

Mechanical Pressure Gauge and two 1/4'' gas inlet and outlet on the

front for connection of gas source(s)

Container capacity: 5 Liter.
Warning: MSK-SFM-6E is suitable for wet blending and mixing only is

not suggested for use with dry mixing or ball milling.

Optionals

Water Cooling & Heating

1. 16 L/min water flow is required to cool mixing tank

2. 1/4'' water cooling inlet and outlet - connected to built-in cooling jacket - on

the back of the mixing tank for water hose connection

3. A recirculating water chiller is recommended for saving water (not included)

4. Heatable container with precision temperature controller  is available

upon request at extra cost up to 200oC

Vacuum Pump (Optional)

Vacuum pump is NOT included. Please order separately.

304SS Container Internal  Size

270mm O.D. x 210mm I.D. x 230mm H

Instrument Dimensions

580mm(L) x 320mm(W) x 1340mm(H)

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Net Weight

119kg
