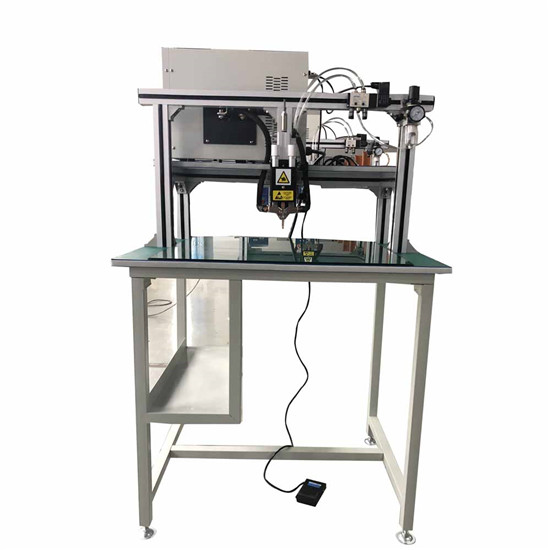

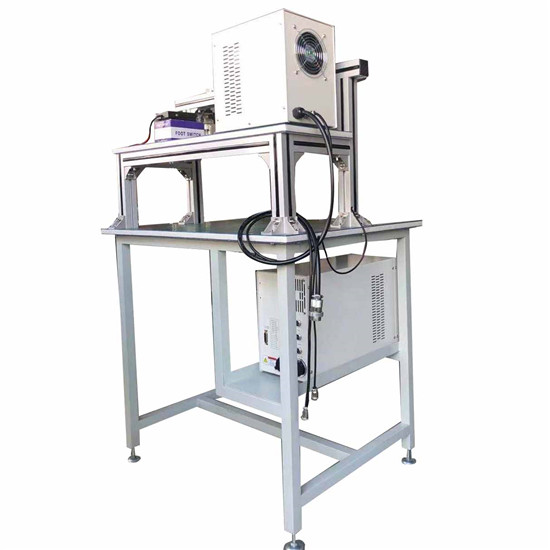

AC Pneumatic Manual Battery Pack Welding Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-AC200
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail


AC Pneumatic Manual Battery Pack Welding Machine


FEATURE

This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

It equipped  with advanced 220V AC welding power supply, Suitable battery for pack spot welding and assembly in the factory.

This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...


SPECIFICATION

Welder Power Suppler

220V AC welder

Power Supply

220AC/50Hz

Welding battery

18650, 26650, 21700...

Strip Material

Nickel, Nickel-plated steel

Welding Thickness

0.03~0.2mm

Maximum power output of transformer

15 KVA

Output Maximum Short Circuit Current

3000A

Open circuit voltage

6.5V

Control mode

Constant Current Control

Cooling mode

Forced air cooling

Total weight

24kg
